Shop DAYTON

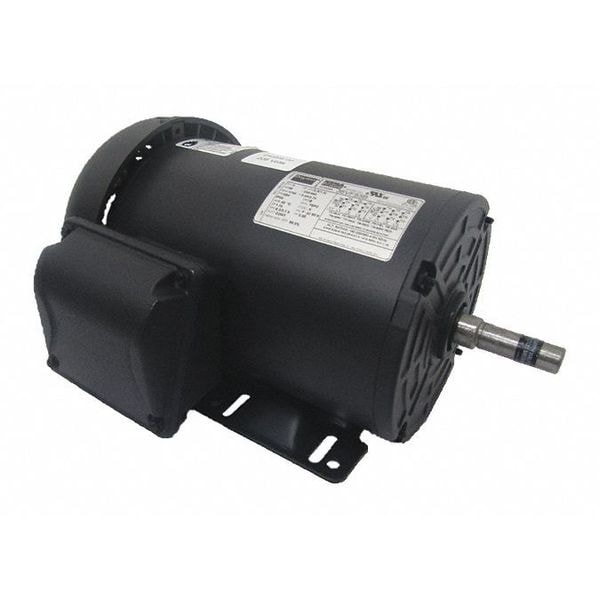

Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1745 Nameplate RPM

  • Mfr # 36VF93

  • Zoro # G1810947

product price:  $535.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1745
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF93
Zoro #
G1810947
UPC #
190735276242
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 3/4 in
Overall Length
13 5/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56H
Body Diameter
6.45 in
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1745
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
Frame
56H
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
2,15,55
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Duty Cycle
Continuous
Shaft Design
Keyed
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Includes
Shaft Key
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Insulation Class
F
Bearing Lubrication Type
Permanently Lubricated
Number of Speeds
1
Manufacturers Warranty
1 yr
Constant Torque Rating
4:1
Bearing Type
Ball
Weight
19 5/8 kg
Frame Material
Steel
Full Load Current @ 60 Hz
5.44/2.72 A
Application
General Purpose
Conduit Box Location
Exterior
Bearing Protection Type
Shaft Slingers
Efficiency Rating
NEMA Premium Efficiency
Variable Torque Rating
10:1
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1745, Frame 56H, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
