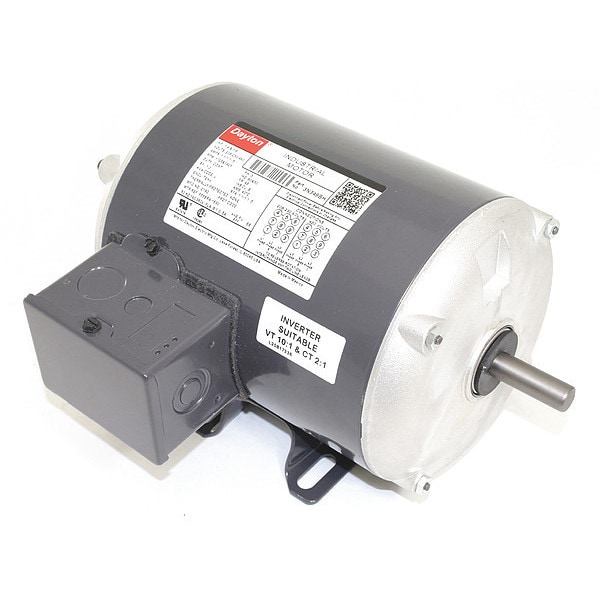

Dayton Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM 3N349 - main

Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 3N349

  • Zoro # G2410204

product price:  $233.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.1-1.1/.5 A
Frame
48
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3N349
Zoro #
G2410204
UPC #
190735292600
Country of Origin
Multiple

Dimensions

Length Less Shaft
10 3/4 in
Overall Length
12 5/8 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
7.31 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1,725
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.1-1.1/.5 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Nominal Efficiency
78.5 %
Standards
CSA, UL
Footnotes
5,10
Inverter Rated
Yes
Motor Thermal Protection
None
Duty Cycle
Continuous
Motor Enclosure Type
Totally Enclosed Fan Cooled
Weight
30 lb
Frequency
60/50 Hz
Usable @ 208V
Usable at 208V
Manufacturers Warranty
1 yr
Bearing Type
Ball
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
3.0-2.9/1.5 A
Mounting Position
All Angle
Insulation Class
F
Includes
Conduit Box
Nameplate Voltage @ 50 Hz
190/380
Product Type
General Purpose Motor
Application
General Purpose
Conduit Box Location
Exterior
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 200V
Usable at 200V
Nameplate Service Factor @ 50 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
3/4 hp
Efficiency Rating
NEMA Energy Effiicent
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Number of Speeds
1
Nameplate RPM @ 50 Hz
0935
Full Load Current @ 50 Hz
1.6/3.3
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,725, Frame 48, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.1-1.1/.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 1701-1800, CSA, UL
