Century

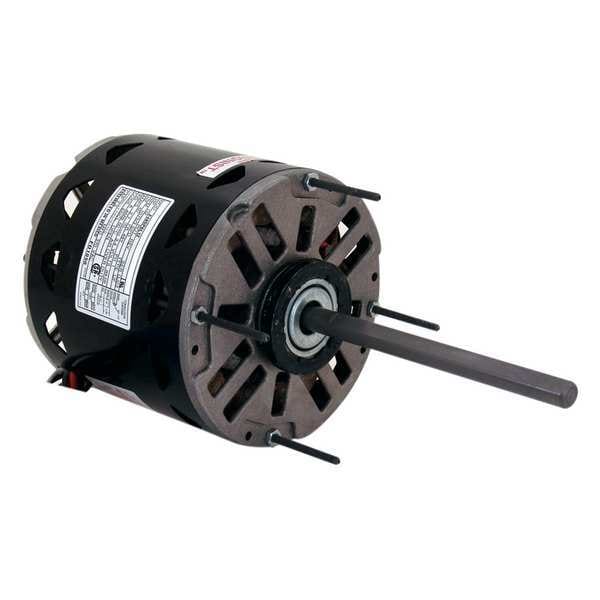

Motor, PSC, 1/6 HP, 1075 RPM, 115V, 48Y, OAO

product price: $165.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Mounting Position All Angle
  • Resilient Ring Dia. 2 1/4 in
  • Standards CSA Certified, UL Recognized
  • Motor Thermal Protection Auto
  • Body Dia. 5 5/8 in
See all product information

Product Information

Dimensions

Resilient Ring Dia. 2 1/4 in
Body Dia. 5 5/8 in
Shaft Dia. 1/2 in
Shaft Length 6 7/16 in
Stud Size #8-32
Length Less Shaft 4 7/8 in
Overall Length 10 13/16 in
Lead Length 26 in

Details

Motor Mounting Position All Angle
Standards CSA Certified, UL Recognized
Motor Thermal Protection Auto
Hz 60 Hz
Nameplate RPM 1,075
Capacitor Required 2MDV6
Item Direct Drive Blower Motor
Voltage 115V AC
Motor Enclosure Design Open Air-Over
HP 1/6
RPM Range 1,001-1,100
Includes Belly Band, Resilient Mounting Ring
Motor Shaft Design Flat
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Phase Single
Application Blowers, Fans and Air Circulators
Motor Application HVAC/R
Motor Mounting Type Ring
Mounting Stud Location Shaft End
Duty Continuous
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Max. Ambient Temp. 50 Degrees C
Motor Service Factor 1
Ring to Ring Center 4 7/16 in
Motor Design Permanent Split Capacitor
Motor Shaft Rotation CW/CCW
Motor Sub Application Direct Drive Fan/Blower
Ins. Class B
Full Load Amps 3.02 A
Frame 48Y
Motor Bearings Ball
No. of Speeds 3
Weight 11 lb
Mounting Holes (4) #8-32
Usable @ 208V No
Motor Frame Material Steel
Number of Shafts 1
Usable @ 200V No
Stud Quantity 4
Mounting Ring
Number of Speeds 3

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 3.02 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 50 Degrees C, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position All Angle, Number of Shafts 1
