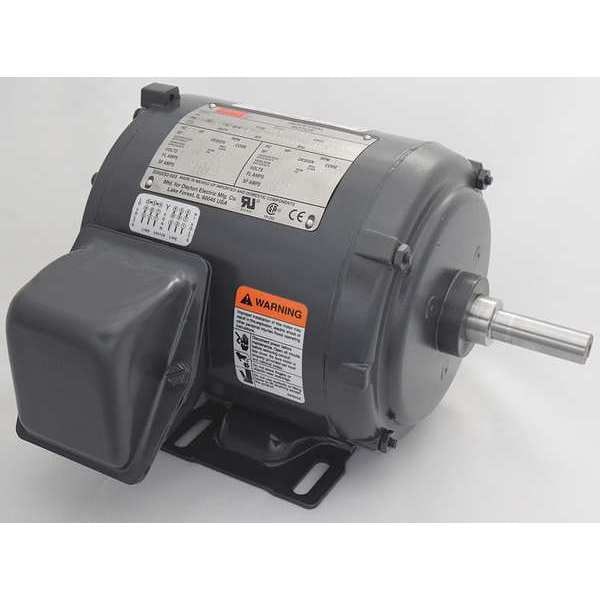

Dayton Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM 2N863 - main

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 2N863

  • Zoro # G1771533

product price:  $276.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.4/0.70 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2N863
Zoro #
G1771533
UPC #
190735228159
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 7/16 in
Overall Length
11 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
7.31 in
Frame Size
56
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.4/0.70 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
75.5 %
Standards
CSA Certified (191252), UL Recognized (E47479)
Footnotes
5,10
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Nameplate Voltage @ 50 Hz
190/380V AC
Frequency
60/50 Hz
Bearing Type
Ball
Usable @ 208V
Usable at 208V
Nameplate Service Factor @ 60 Hz
1.25
Insulation Class
F
Full Load Current @ 50 Hz
1.0/1.9
Product Type
General Purpose Motor
Mounting Position
All Angle
Application
General Purpose
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Efficiency Rating
NEMA Standard Efficiency
Nameplate RPM @ 50 Hz
1,425 RPM
Weight
30 lb
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Lubrication Type
Permanently Lubricated
Shaft Design
Keyed
Full Load Current @ 60 Hz
1.8-1.7/0.90 A
Nameplate Horsepower @ 50 Hz
1/2 hp
Usable @ 200V
Usable at 200V
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 50 Hz
1
Conduit Box Location
Exterior
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,770, Frame 56, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.4/0.70 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 1701-1800
