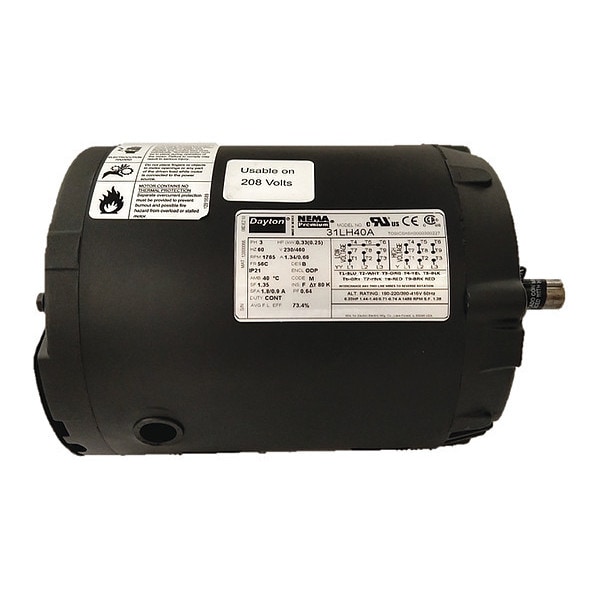

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 31LH40

  • Zoro # G9096141

product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.3/0.68 A
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH40
Zoro #
G9096141
UPC #
190735255070
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 1/4 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Frame Size
56C
Body Diameter
6.45 in
Bolt Circle Diameter
5 7/8 in
Wire Rope Length
10 5/16 in
Length
10 5/16 in

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.3/0.68 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
73.4 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Includes
Shaft Key
Footnotes
15,16
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Usable @ 200V
Not Usable at 200V
Weight
8 3/8 kg
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Bearing Lubrication Type
Permanently Lubricated
Product Type
General Purpose Motor
Conduit Box Location
Interior
Frequency
60 Hz
Shaft Design
Keyed
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.35
Number of Speeds
1
Variable Torque Rating
1000:1
Frame Material
Steel
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Bearing Protection Type
No Protection
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
1.34/0.668 A

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/3 HP, Nameplate RPM 1765, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.3/0.68 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
