Shop DAYTON

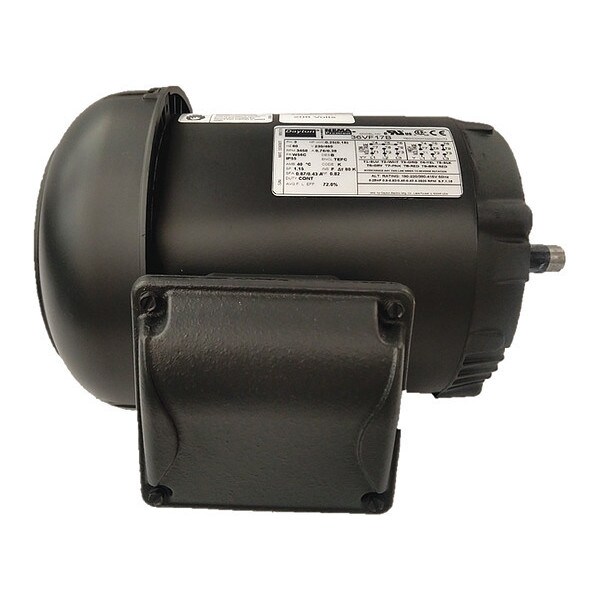

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 3460 Nameplate RPM

  • Mfr # 36VF17

  • Zoro # G1860540

product price:  $223.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
3460
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
0.76/0.38 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF17
Zoro #
G1860540
UPC #
190735275498
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/16 in
Overall Length
11 15/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.45 in
Shaft Diameter
5/8 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
3460
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
0.76/0.38 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
74 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
2, 15, 57
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Capacitor Required
No
Duty Cycle
Continuous
Bearing Lubrication Type
Permanently Lubricated
Bearing Type
Ball
Weight
8 7/32 kg
Variable Torque Rating
10:1
Efficiency Rating
NEMA Premium Efficiency
Frame Material
Steel
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 200V
Not Usable at 200V
Product Type
General Purpose Motor
Conduit Box Location
Exterior
Application
General Purpose
Number of Speeds
1
Bearing Protection Type
Shaft Slingers
NEMA Design Class
B
Inverter Rating
Inverter Rated
Mounting Position
Horizontal
Includes
Shaft Key
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Frequency
60 Hz
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
0.76 / 0.38 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 3460, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.76/0.38 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
