Shop DAYTON

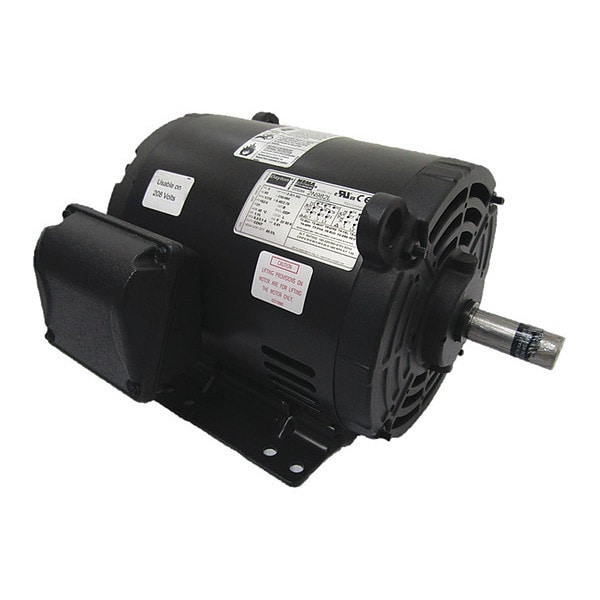

Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 1750 Nameplate RPM

  • Mfr # 2N982
  • Zoro # G1731335
product price:
$
613.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1750
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.2/3.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N982
Zoro #
G1731335
UPC #
190735228302
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 7/8 in
Overall Length
13 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Body Diameter
8.11 in
Frame Size
182-4
Shaft Diameter
7/8 in
Wire Rope Length
13 1/8 in
Length
13 1/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1750
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.2/3.1 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Footnotes
2,10,15
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Mounting Position
Horizontal
Full Load Current @ 60 Hz
5.37/2.69 A
Inverter Rating
Inverter Rated
Variable Torque Rating
10:1
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Manufacturers Warranty
3 yr
Application
General Purpose
Insulation Class
F
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Bearing Protection Type
No Protection
Bearing Type
Ball
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Usable @ 200V
Not Usable at 200V
Weight
26 7/32 kg
Nameplate Service Factor @ 60 Hz
1.15
Conduit Box Location
Exterior
Shaft Design
Keyed
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Includes
Shaft Key

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1750, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.2/3.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
