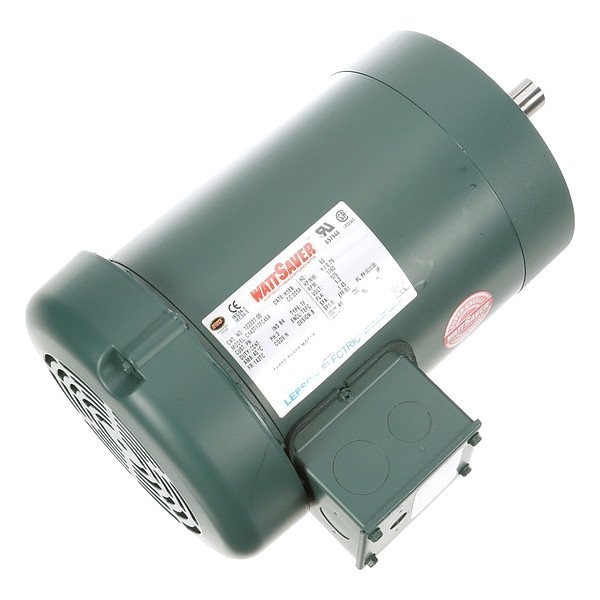

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 575V Voltage, 1,760 Nameplate RPM

  • Mfr # 122227.00

  • Zoro # G211929951

product price:
$
893.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,760
Voltage
575V
Motor Mounting Type
C-Face
Full Load Amps
1.36 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122227.00
Zoro #
G211929951
UPC #
691720104149
Country of Origin
United States

Dimensions

Length Less Shaft
10 7/16 in
Overall Length
12 11/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
143TC
Wire Rope Length
12 11/16 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1,760
Voltage
575V
Motor Mounting Type
C-Face
Full Load Amps
1.36 A
Frame
143TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1760
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
575 V
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA Certified, UL Listed
Usable @ 200V
Not Usable at 200V
Weight
35 lb
Duty Cycle
Continuous
Motor Thermal Protection
None
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Bearing Type
Ball
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Application
General Purpose
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
1.36 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Nameplate Voltage @ 50 Hz
190/380V AC
NEMA Design Class
B
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,450 RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,760, Frame 143TC, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 1.36 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1760, CE, CSA Certified, UL Listed
