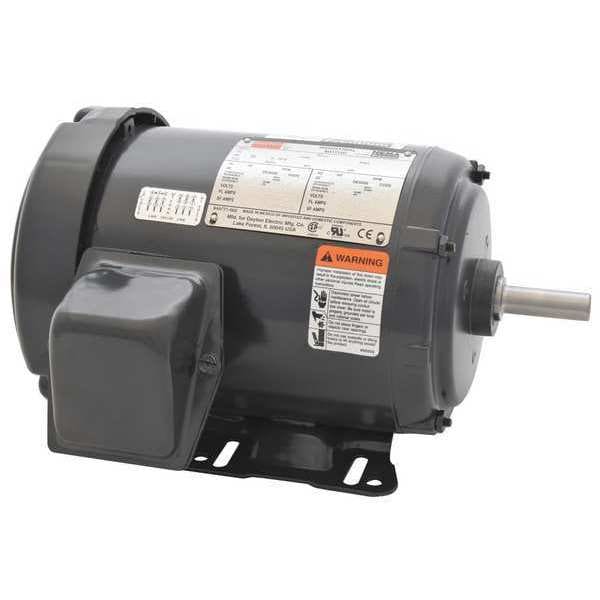

Dayton Three-Phase General Purpose Motor, 2 HP, 56H Frame, 208-230/460V AC Voltage, 3505 Nameplate RPM 48ZJ89 - main

Three-Phase General Purpose Motor, 2 HP, 56H Frame, 208-230/460V AC Voltage, 3505 Nameplate RPM

  • Mfr # 48ZJ89

  • Zoro # G6298391

product price:  $549.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3505
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.0/2.5 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
48ZJ89
Zoro #
G6298391
UPC #
190735905159
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/2 in
Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56H
Shaft Diameter
5/8 in
Body Diameter
6.44 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
3505
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.0/2.5 A
Frame
56H
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC060A
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
2, 10, 15
Duty Cycle
Continuous
Nameplate Voltage @ 50 Hz
190/380V AC
Full Load Current @ 60 Hz
5.7-5.3/2.7 A
Application
General Purpose
Mounting Position
All Angle
Frequency
60/50 Hz
Shaft Design
Keyed
Inverter Rating
Inverter Rated
Usable @ 208V
Usable at 208V
Nameplate Horsepower @ 50 Hz
2 hp
Usable @ 200V
Usable at 200V
Nameplate Service Factor @ 60 Hz
1.25
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Nameplate RPM @ 50 Hz
1420
Insulation Class
F
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 50 Hz
3.2/6.3
Nameplate Service Factor @ 50 Hz
1
Manufacturers Warranty
1 yr
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Bearing Lubrication Type
Permanently Lubricated
Weight
35 lb

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3505, Frame 56H, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.0/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600
