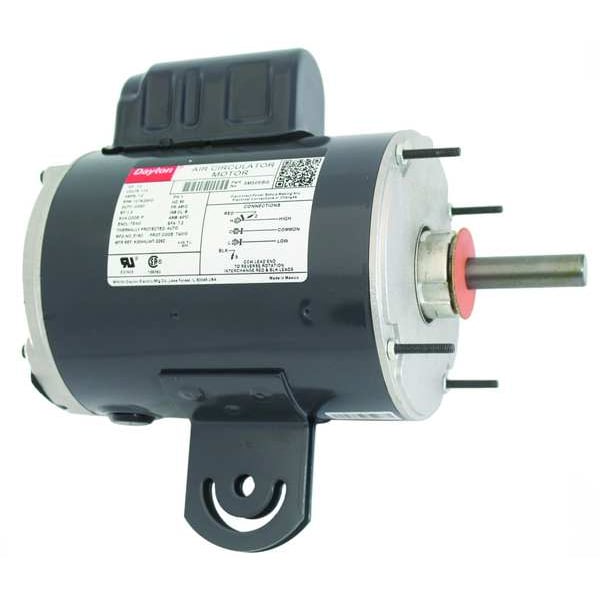

Pedestal Fan Motor, 1/2 HP, 1,075 Nameplate RPM, 115V AC, 48YZ Frame, 7.2 A Full Load Amps

  • Mfr # 3M505

  • Zoro # G1582366

product price:
$
275.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3M505
Zoro #
G1582366
UPC #
190735291863
Country of Origin
Multiple

Dimensions

Shaft Length
2 1/2 in
Overall Length
10 13/16 in
Body Dia.
5 5/8 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Frame Size
48YZ
Wire Rope Length
10 13/16 in
Length
10 13/16 in

Details

Item
Pedestal Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Hz
60 Hz
Includes
Water Slinger
Full Load Amps
7.2 A
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Yoke
Motor Thermal Protection
Auto
10 Ft. Cord and Pull Chain Switch
No
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application
HVAC/R
Ins. Class
B
Ambient Temperature
40 Degrees C
Nameplate RPM
1,075
Motor Sub Application
Pedestal Fan
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Motor Shaft Design
Flat
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Frequency
60 Hz
Sub Application
Pedestal Fan
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
7.2 A
Shaft Design
Flat
Drive Type
Direct Drive
Product Type
Pedestal Fan Motor
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 7.2 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 5/8 in
