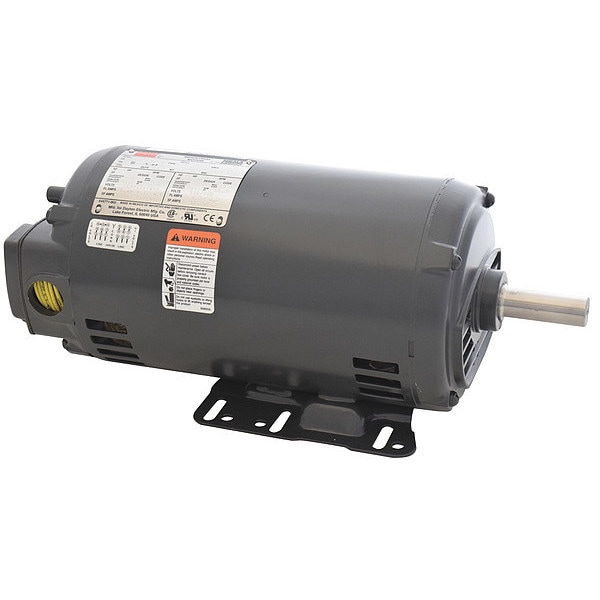

Dayton Three-Phase General Purpose Motor, 3 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1760 Nameplate RPM 41D773 - main

Three-Phase General Purpose Motor, 3 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1760 Nameplate RPM

  • Mfr # 41D773

  • Zoro # G6145194

product price:  $798.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.1/4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
41D773
Zoro #
G6145194
UPC #
190735298633
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 7/8 in
Overall Length
16 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.1/4.0 A
Frame
143-5T/56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CSA Certified (258525), UL Recognized for US and Canada (E47479)
CC Number
CC060A
Green Certification or Other Recognition
NEMA Premium Rated
Footnotes
2,10,15
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1760, Frame 143-5T/56HZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.1/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 1701-1800
