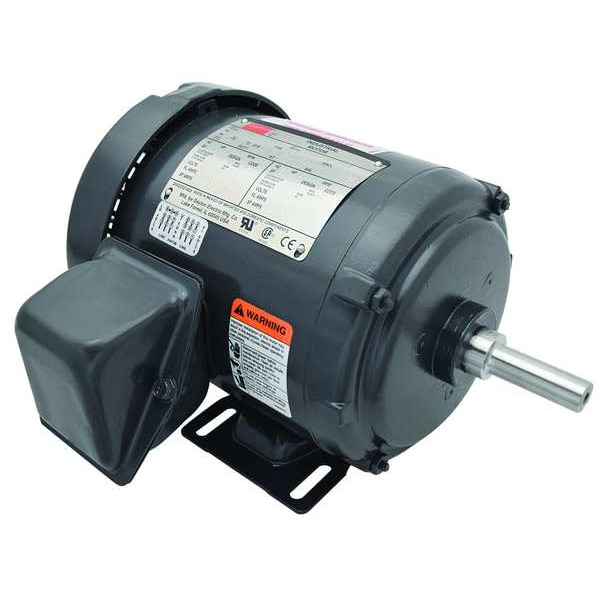

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 2N864

  • Zoro # G1178667


product price:  $303.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.5/0.70 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2N864
Zoro #
G1178667
UPC #
190735228166
Country of Origin
Multiple

Dimensions

Length Less Shaft
9 7/16 in
Overall Length
11 11/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.5/0.70 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
72 %
Standards
CSA Certified (191252), UL Recognized (E47479)
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
5,10
Duty Cycle
Continuous

Description

The DAYTON - 2N864 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It efficiently converts electrical energy into mechanical energy to operate different types of machinery, making it versatile enough to be utilized across various sectors such as manufacturing lines and HVAC systems.

Key Features of the DAYTON - 2N864 General Purpose Motor:

  • Duty Cycle: The motor is designed for continuous duty cycle, which may be indicative of its performance in certain industrial applications.
  • Frame: With a frame size of 56, this motor conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: The maximum current draw at full capacity is 1.5/0.70 A, crucial for determining power supply requirements and ensuring safe operation.
  • Inverter Rated: Yes – this signifies that the motor can be powered by a variable frequency drive, allowing precise control over speed and torque.
  • Max. Ambient Temp.: The motor is rated for operation at an ambient temperature up to 40 Degrees C. Performance may vary based on environmental conditions.
  • Motor Bearings: Ball bearings are incorporated within the design intended to reduce friction between moving parts. The actual performance may depend on specific load conditions.
  • Motor Enclosure Design: Totally enclosed fan cooled design protects internal components from environmental factors while also providing cooling functionality

All angle mounting position with rigid base type provides potential flexibility in installation orientation. Compatibility will depend on specific machinery requirements.
