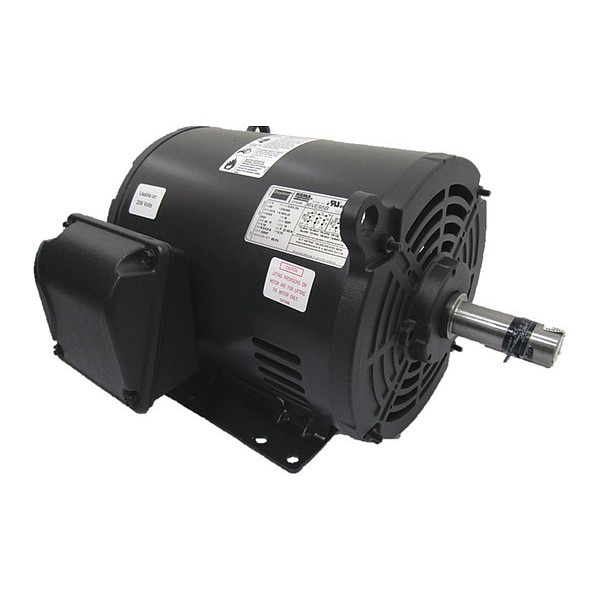

Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1180 Nameplate RPM

  • Mfr # 36VE95

  • Zoro # G1860671

product price:  $869.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

HP
3
Nameplate RPM
1180
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.6/4.4 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VE95
Zoro #
G1860671
UPC #
190735275290
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 3/16 in
Overall Length
16 3/16 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
213-5
Body Diameter
9.78 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1180
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.6/4.4 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Includes
Shaft Key
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,15,53
Duty Cycle
Continuous
Capacitor Required
No
Weight
52 11/16 kg
Bearing Protection Type
No Protection
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Frequency
60 Hz
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Number of Speeds
1
Bearing Lubrication Type
Permanently Lubricated
Frame Material
Steel
Product Type
General Purpose Motor
Variable Torque Rating
10:1
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
8.21/4.11 A
Manufacturers Warranty
1 yr
Mounting Position
Horizontal
Bearing Type
Ball
Usable @ 200V
Not Usable at 200V
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
NEMA Design Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1180, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.6/4.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
