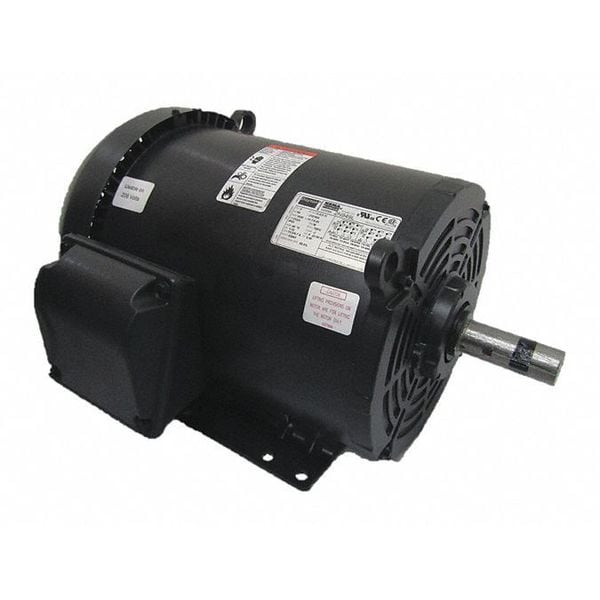

Three-Phase General Purpose Motor, 5 HP, 213/5 Frame, 230/460V AC Voltage, 3485 Nameplate RPM

  • Mfr # 2N949
  • Zoro # G1588964
product price:
$
1,148.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
3485
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N949
Zoro #
G1588964
UPC #
190735228296
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 1/2 in
Overall Length
19 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
3 yr
Body Diameter
9.78 in
Frame Size
213-5
Wire Rope Length
19 1/4 in
Shaft Diameter
1 1/8 in
Length
19 1/4 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3485
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Footnotes
5,10,15
Inverter Rated
Yes
Duty Cycle
Continuous
Variable Torque Rating
10:1
Includes
Shaft Key
Full Load Current @ 60 Hz
12.3/6.17 A
Mounting Position
All Angle
Shaft Design
Keyed
Application
General Purpose
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Insulation Class
F
Usable @ 200V
Not Usable at 200V
Bearing Protection Type
Shaft Slingers
Constant Torque Rating
4:1
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Permanently Lubricated
Manufacturers Warranty
3 yr
Number of Speeds
1
Weight
50 3/8 kg
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3485, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL
