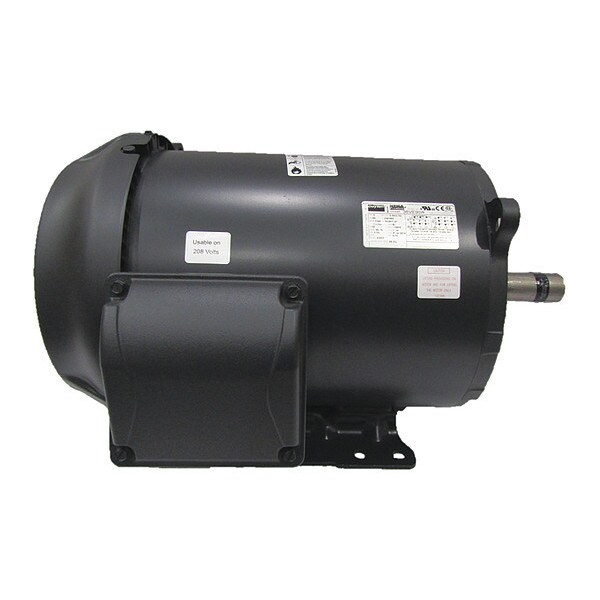

Dayton Three-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1175 Nameplate RPM 36VE90 - main
Shop DAYTON

Three-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1175 Nameplate RPM

  • Mfr # 36VE90

  • Zoro # G1860699

product price:  $1,522.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.0/7.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VE90
Zoro #
G1860699
UPC #
190735275245
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 9/16 in
Overall Length
22 5/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
254-6U
Body Diameter
11.52 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.0/7.0 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Includes
Shaft Key
Footnotes
2,15,53
Motor Thermal Protection
None
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium Rated
Duty Cycle
Continuous
Capacitor Required
No
Shaft Design
Keyed
Bearing Protection Type
Shaft Slingers
Frame Material
Steel
Bearing Type
Ball
Product Type
General Purpose Motor
Weight
82 13/32 kg
Application
General Purpose
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Permanently Lubricated
Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Constant Torque Rating
4:1
Insulation Class
F
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
14.8/7.41 A
Manufacturers Warranty
1 yr
Inverter Rating
Inverter Rated
Frequency
60 Hz
Variable Torque Rating
10:1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1175, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.0/7.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
