Leeson

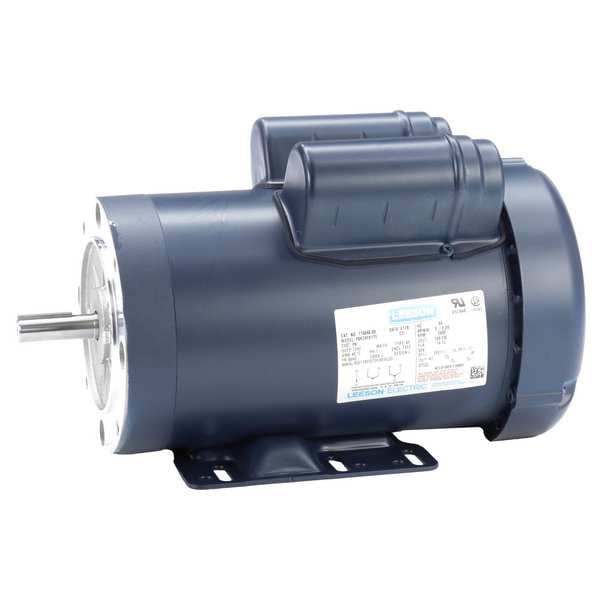

Capacitor-Start General Purpose Motor, 3 HP, 56HC Frame, 208-230V AC Voltage, 3,450 Nameplate RPM

product price: $717.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Motor Mounting Type Rigid Base
  • HP 3
  • RPM Range 3,001-3,600
  • Voltage 208-230V AC
See all product information

Product Information

Dimensions

Lead Length 6 in
Body Dia. 7.7 in
Height 8 1/2 in
Overall Length 14 in
Bolt Circle Dia. 5 5/8 in
Length Less Shaft 12 in
Shaft Length 1 7/8 in
Manufacturers Warranty Length 18 mo
Shaft Dia. 5/8 in

Details

Item General Purpose Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
HP 3
RPM Range 3,001-3,600
Voltage 208-230V AC
Frame 56HC
Motor Thermal Protection Manual
Motor Service Factor 1
Voltage Compatibility 208-230V AC
Motor Application General Application
Motor Design Capacitor-Start
Nameplate RPM 3,450
Motor Shaft Rotation CW/CCW
Motor Mounting Position Horizontal
Motor Frame Material Rolled Steel
Motor Shaft Design Keyed
Standards CSA, UL Recognized
Includes Key
Conduit Box Position F1
Part Winding Start Capable No
Weight 49 lb
Finish Enamel
Regreasable Bearings Permanently Lubricated Bearings
No. of Speeds 1
Phase Single
Number of Wires 5
Nominal Efficiency 81.5 %
Motor Bearings Ball
Hz 60 Hz
Full Load Amps 14.0-13.0
Duty Cycle Continuous
Starter Required No
NEMA Design L
Ins. Class F
Usable @ 208V Yes
Usable @ 200V No
Bearing Protection Double Shield
Max. Ambient Temp. 104 Degrees F
Shaft Material 1144 Stressproof Carbon Steel
Conduit Box Location Exterior
Inverter Rating No
Inverter Rated No

Description

General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 56HC, Hz 60 Hz, Full Load Amps 14.0-13.0, Height 8 1/2 in, HP 3, Includes Key, Ins. Class F, Inverter Rated No, Inverter Rating No, Lead Length 6 in, Length Less Shaft 12 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F, Motor Application General Application
