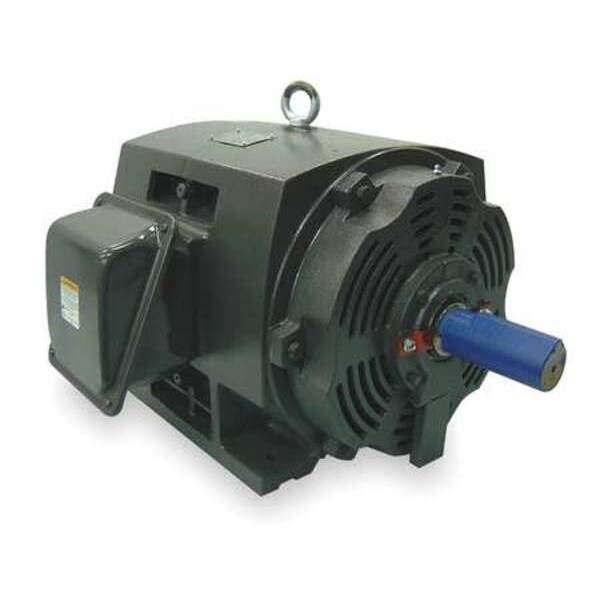

Three-Phase General Purpose Motor, 50 HP, 324TS Frame, 230/460V AC Voltage, 3560 Nameplate RPM
Mfr # 194139.00
Zoro # G1148077
product price: $5,337.99
/ea
Additional $160.00 delivery surcharge applies per item.
Key Features
HP
50
Nameplate RPM
3560
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113/56.5 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
194139.00
Zoro #
G1148077
UPC #
190735324905
Country of Origin
Multiple
Dimensions
Length Less Shaft
23 5/16 in
Overall Length
27 1/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 50 HP, Nameplate RPM 3560, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 113/56.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
