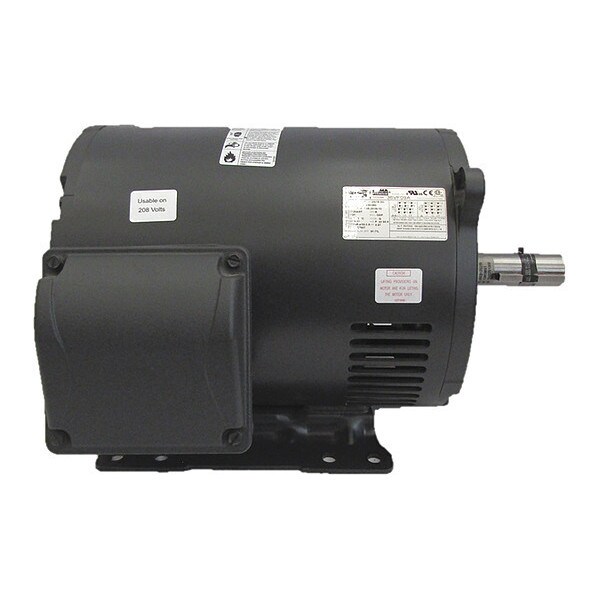

Three-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3530 Nameplate RPM

  • Mfr # 36VF09

  • Zoro # G1578705

product price:  $1,852.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

HP
25
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
58.2/29.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF09
Zoro #
G1578705
UPC #
190735275429
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/2 in
Overall Length
20 1/2 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Body Diameter
11.52 in
Frame Size
254-6T
Shaft Diameter
1 5/8 in

Details

Item
General Purpose Motor
HP
25
Nameplate RPM
3530
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
58.2/29.1 A
Frame
254/6T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CSA, UL
CC Number
CC029A
Includes
Shaft Key
Footnotes
2,15,16
Inverter Rated
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Duty Cycle
Continuous
Capacitor Required
No
Full Load Current @ 60 Hz
58.2/29.1 A
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Weight
83 9/16 kg
Mounting Position
Horizontal
Frame Material
Steel
Number of Speeds
1
Bearing Protection Type
No Protection
Usable @ 200V
Not Usable at 200V
Insulation Class
F
Application
General Purpose
Product Type
General Purpose Motor
Bearing Type
Ball
Frequency
60 Hz
NEMA Design Class
B
Bearing Lubrication Type
Regreasable
Conduit Box Location
Exterior
Motor Enclosure Type
Open Drip Proof
Inverter Rating
Inverter Rated
Variable Torque Rating
10:1
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3530, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 58.2/29.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
