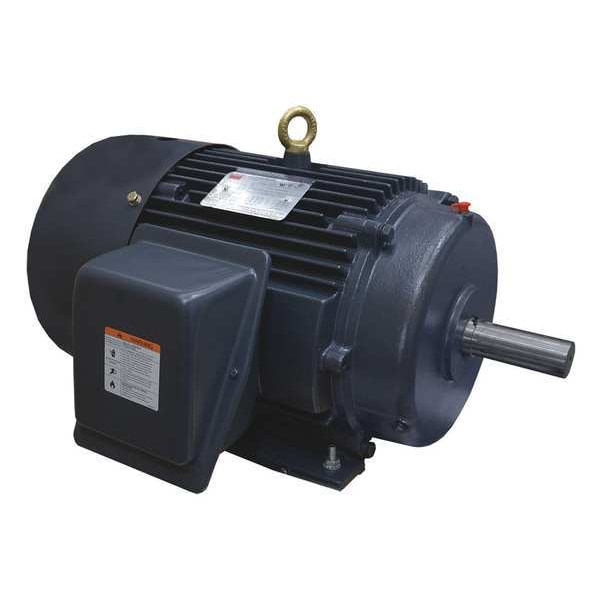

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1165 Nameplate RPM
Mfr # 194151.00
Zoro # G1636844
product price:Â
$
2,544.99
/ea
Additional $140.00 delivery surcharge applies per item.
Key Features
HP
7 1/2
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
20.9/10.4 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 194151.00
- Zoro #
- G1636844
- UPC #
- 190735227640
- Country of Origin
- Multiple
Dimensions
- Length Less Shaft
- 22 5/8 in
- Overall Length
- 23 11/16 in
- Shaft Dia.
- 1 5/8 in
- Shaft Length
- 4 in
- Manufacturers Warranty Length
- 3 yr
- Shaft Diameter
- 1 5/8 in
- Frame Size
- 254T
- Wire Rope Length
- 23 11/16 in
- Length
- 23 11/16 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1165, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.9/10.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
