  9. Turbine Pump, 1/2 HP, 3 Ph, 1.7/0.9 Amp

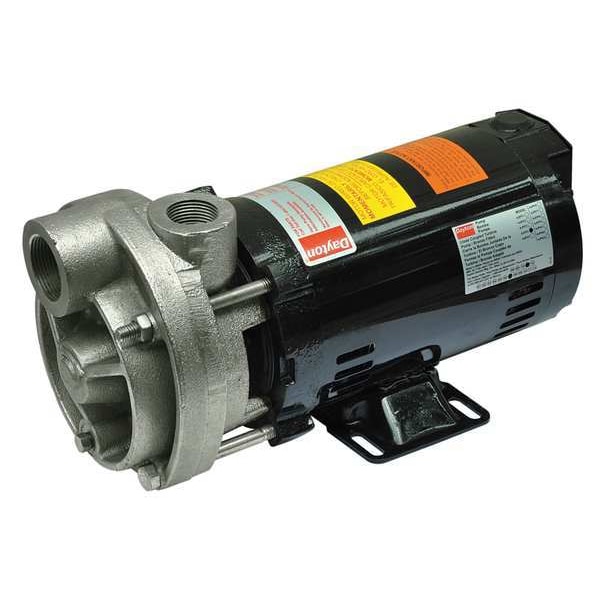

Dayton Turbine Pump, 1/2 HP, 3 Ph, 1.7/0.9 Amp 4JPF4 - main

Turbine Pump, 1/2 HP, 3 Ph, 1.7/0.9 Amp

  • Mfr # 4JPF4

  • Zoro # G2670464

product price: $793.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
208-230/460
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JPF4
Zoro #
G2670464
UPC #
190735327081
Country of Origin
India

Dimensions

Width
6 3/4 in
Height
7 5/8 in
Overall Width
6.75 in
Overall Height
7.63 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 in

Details

HP
1/2 hp
Voltage
208-230/460
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
Inlet Pressure
85 psi
GPM @ 100 PSI
1.3
Inlet (In.)
1-1/4
Amps
1.8-1.7/0.9
Best Efficiency GPM @ Head
1.9 @ 75 ft
Hz
60
Frame
56J
GPM @ 30 PSI
3.1
Duty
Continuous
Inlet
1-1/4 in
GPM @ 90 PSI
1.5
Max. Specific Gravity
1
GPM @ 40 PSI
2.8
Impeller Type
Open
Outlet
1 in
GPM @ 20 PSI
3.4
Bearing Type
Ball
Motor Type
3-Phase
Impeller Material
Bronze
Agency Compliance
Motor is UL Recognized
Motor RPM
3,450 RPM
Housing Material
Cast Iron with nickel plating
GPM @ 50 PSI
2.6
Motor Enclosure
Open Dripproof (ODP)
Max. Case Pressure
200 psi
GPM @ 75 PSI
1.9
GPM @ 80 PSI
1.7
Item
Turbine Pump
GPM @ 60 PSI
2.3
Includes
OIPM
Phase
Three
GPM @ 10 PSI
3.8
Standards
UL Listed
Features
Designed to Handle Liquids with Entrained Air
Horsepower
1/2 hp
Flow Rate @ 20 psi
3.4 gpm
Flow Rate @ 100 psi
1.3 gpm
Impeller Design
Open
Maximum Flow Rate
3.8 gpm
Flow Rate @ 40 psi
2.8 gpm
NPSHr
85 psi
Flow Rate @ 80 psi
1.7 gpm
Flow Rate @ 10 psi
3.8 gpm
Nameplate Voltage
208-230/460V AC
Duty Cycle
Continuous
Maximum RPM
3,450 RPM
Best Efficiency Head
75 ft
Intake Type
NPT
Flow Rate @ 30 psi
3.1 gpm
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Flow Rate @ 90 psi
1.5 gpm
Minimum Media Temperature
-20 Degrees F
Flow Rate @ 120 psi
0 gpm
Priming
Self-Priming
Motor Frame Designation
56J
Specific Gravity (Maximum)
1
Pump Housing Material
Cast Iron
Shut Off Pressure (Maximum)
120 psi
Operation
Manual
Flow Rate @ 60 psi
2.3 gpm
Case Pressure (Maximum)
200 psi
Seal Type
Mechanical Seal
Frequency
60 Hz
Flow Rate @ 50 psi
2.6 gpm
Discharge Type
NPT
Minimum Flow Rate
1.3 gpm

Description

Turbine Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1/2 hp, Nameplate Voltage 208-230/460V AC, Shut Off Pressure (Maximum) 120 psi, Maximum Flow Rate 3.8 gpm, Flow Rate @ 10 psi 3.8 gpm, Flow Rate @ 20 psi 3.4 gpm, Flow Rate @ 30 psi 3.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type 3-Phase, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi, Duty Cycle Continuous
