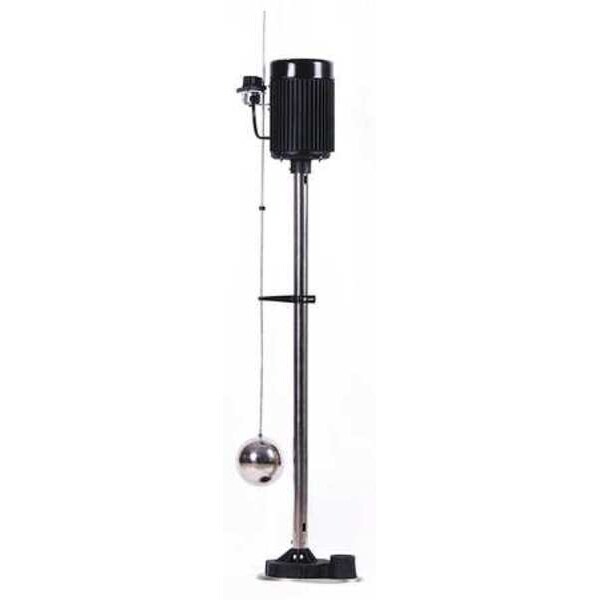

Dayton Upright Sump Pump, 1/3 HP 5URH8 - main

Upright Sump Pump, 1/3 HP

  • Mfr # 5URH8

  • Zoro # G2061701

product price: $868.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast iron
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5URH8
Zoro #
G2061701
UPC #
190735352366
Country of Origin
China

Dimensions

Base to Motor Height
38-3/4"
Cord Length
8 ft
Height
49"
Base to Motor Height (In.)
38-3/4
Min. Sump Pit Dia.
18 in
Max. Diameter Solids
7/16 in
Diameter
11"
Cord Size
16/3
Max. Dia. Solids
7/16"
Cord Length - Pumps
8 ft.
Body Dia.
11 in
Discharge Dia.
1 1/2 in
Overall Height
49 in
Basket Dia.
38 3/4 in
Basin Dia.
38 3/4 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/2 in
Sump Pit Depth - Minimum
24 in
Body Diameter
11 in

Details

Housing Material
Cast iron
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/2
Body Material
Cast Iron
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
44 gpm
Item
Pedestal Sump Pump
Hz
60 Hz
GPM of Water @ 10 Ft. of Head
44
On Point
11 in
Discharge NPT
1-1/2" F
Column Material
Stainless Steel
Features
An Automatic Float Type Switch, Double Shielded Ball Bearings at Both Ends
Impeller Material - Pumps
Stainless Steel
Amps
4 A
Voltage - Pumps
120VAC
For Use With
Nonflammable Liquids Compatible with Pump Materials of Construction
Motor Type
PSC
Insulation Class
B
Max. Head
20 ft
Duty
Continuous
Max. Head - Pumps
20 ft.
Bearing Material
Carbon
Max. Liquid Temp.
200 Degrees F
Switch Type - Pumps
Vertical
Motor RPM
1725
Impeller Material
Stainless Steel
Off Point
4 in
Input Phase AC
1
Pump Body Material
Cast Iron
Base Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
54
GPM of Water @ 15 Ft. of Head
30
Bearing Type
Sleeve
Includes
Manual
Item - Sump Pumps
Upright Sump Pump
Agency Compliance
cCSAus
Cord Type
SJT
Float Material
Stainless Steel
Amps - Pumps
4.00
Thermal Protection
Auto
Discharge Standard
NPT
Duty Cycle
Continuous
Rated Voltage
120V AC
Flow Rate @ 15 Ft. of Head
30 gpm
Discharge Gender
Female
NEC Cord Designation
SJT
Discharge
1-1/4 in FNPT
RPM
1,725 RPM
Flow Rate @ 5 Ft. of Head
54 gpm
Alarm Included
No
Application
For Pumping Clear Water Or Effluent from Wet Pits, Loading Docks, Boiler Dump Pits, Below Ground Vaults, Elevator Pits and Other Residential, Commercial And Industrial Applications, for Hot Water Applications Up to 200 Degrees Fahrenheit
Standards
cCSAus
Current
4 A
Feet of Head - Maximum
20 ft
Flow Rate @ 10 ft of Head
44 gpm
Impeller Design
Vortex
Includes Alarm
No Alarm Included
Rotation Speed - Maximum
1,725 RPM
Power Source
Corded Electric
Frequency
60 Hz
Liquid Temperature - Maximum
200 Degrees F
For Media Type
Clear Water, Trash Water
Horsepower
1/3 hp
Volute Material
Cast Iron

Description

Pedestal Sump Pump, HP 1/3 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 4 in, On Point 11 in, Body Material Cast Iron, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 54 gpm, Flow Rate @ 10 Ft. of Head 44 gpm, Flow Rate @ 15 Ft. of Head 30 gpm, Max. Diameter Solids 7/16 in, Min. Sump Pit Dia. 18 in, Body Dia. 11 in, Overall Height 49 in, Basin Dia. 38 3/4 in, Discharge 1-1/4 in FNPT
