Little Giant Pump Sink Pump System, 1/3 HP, 115V, 9A, CI 506055 - main

Sink Pump System, 1/3 HP, 115V, 9A, CI

  • Mfr # 506055

  • Zoro # G5296191

product price:  $330.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Iron
Voltage
115
HP
1/3 hp
Outlet
1-1/2"
Inlet
1-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
506055
Zoro #
G5296191
UPC #
010121060555
Country of Origin
United States

Dimensions

Basin Height
15 5/8 in
Cord Length
10 ft
Manufacturers Warranty Length
1 yr
Basin Inlet Diameter
1 1/2 in
Vent Size
2 in
Basin Diameter
13 7/8 in
Inlet Diameter
1 1/2 in
For Vent Pipe Diameter
2 in
Discharge Diameter
2 in

Details

Housing Material
Cast Iron
Voltage
115
HP
1/3 hp
Outlet
1-1/2"
Inlet
1-1/2"
Switch Type
Diaphragm
Basin Capacity
5 gal
Shaft Seal
Mechanical
Basin Material
Polypropylene
GPM of Water @ 15 Ft. of Head
12.5
Impeller Material
Nylon
Max. Head
18 ft
Includes
Intergal Diaphragm Swich
GPM of Water @ 5 Ft. of Head
45.83
Motor Type
Shaded pole
GPM of Water @ 10 Ft. of Head
29.16
Max. Liquid Temp.
120 Degrees F
Vent
2"
Amps
9 A
Item
Sink Drain Pump System
Flow Rate @ 5 Ft. of Head
46 gpm
Rated Voltage
110V AC
Flow Rate @ 15 Ft. of Head
13 gpm
Switch Actuation
Diaphragm
Flow Rate @ 10 Ft. of Head
29 gpm
Pump Body Material
Cast Iron
Discharge Location
Top
Number of Pumps
1
Discharge Gender
Female
Flow Rate @ 5 ft of Head
46 gpm
Liquid Temperature - Maximum
125 Degrees F
Switch Electrical Connection
Integral
Current
9 A
Feet of Head - Maximum
18 ft
Inlet Standard
NPT
For Media Type
Clear Water
Power Source
Corded Electric
Inlet Gender
Female
Flow Rate @ 10 ft of Head
29 gpm
Horsepower
1/3 hp
Discharge Standard
NPT

Description

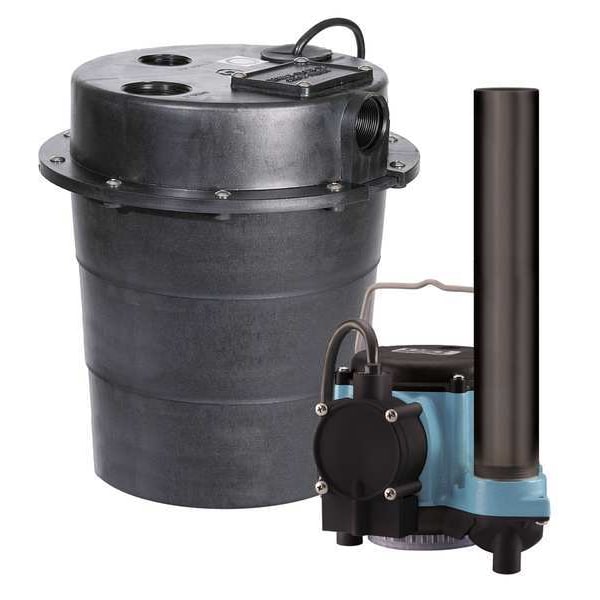

The LITTLE GIANT PUMP 506055 is a sink drain pump system designed to remove clear water from locations where gravity drainage is not practical. It is used with laundry trays, lavatory sinks, wet bar sinks, dehumidifiers, air conditioners, and water softeners. This system includes one 1/3 hp pump, an integral diaphragm switch, discharge pipe, and a 5 gallon polypropylene basin with a 1-1/2 in inlet, 2 in vent, and top discharge connection.

Key Features of the LITTLE GIANT PUMP 506055:

  • Pump Power: 1/3 hp corded electric motor, rated at 115V and 9 A.
  • Flow Performance: Pumps up to 46 gpm at 5 ft of head, 29 gpm at 10 ft, and 13 gpm at 15 ft.
  • Maximum Head: Handles discharge heights up to 18 ft.
  • Basin Size: 5 gal basin measures 13-7/8 in diameter x 15-5/8 in height.
  • Basin Construction: Polypropylene basin with cast iron pump housing and nylon impeller.
  • Connections: 1-1/2 in female NPT inlet and 2 in female NPT top discharge; vent size is 2 in.
  • Switch Type: Integral diaphragm switch for automatic pump actuation.
  • Liquid Handling: For clear water with a maximum liquid temperature of 125 degrees F.
  • Cord Length: 10 ft power cord.
