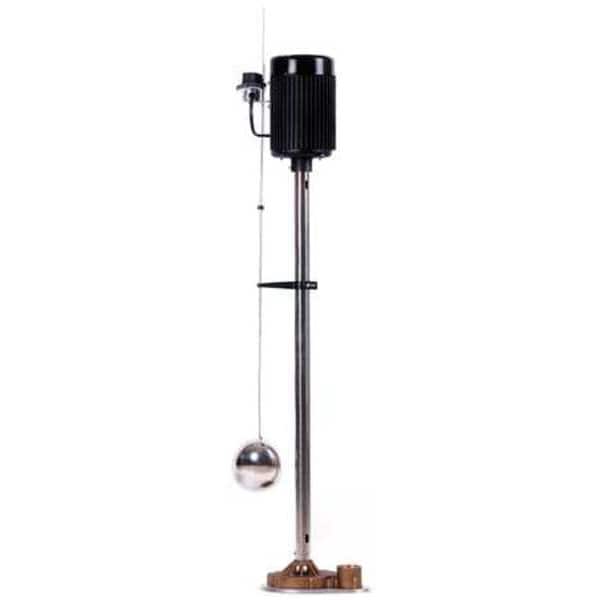

Dayton Upright Sump Pump, 1/3 HP 5URJ0 - main

Upright Sump Pump, 1/3 HP

  • Mfr # 5URJ0

  • Zoro # G1920877

product price: $987.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Bronze
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5URJ0
Zoro #
G1920877
UPC #
190735352380
Country of Origin
China

Dimensions

Base to Motor Height
38-3/4"
Cord Length
8 ft
Min. Sump Pit Dia.
18 in
Max. Diameter Solids
7/16 in
Height
49"
Diameter
11"
Base to Motor Height (In.)
38-3/4
Max. Dia. Solids
7/16"
Cord Length - Pumps
8 ft.
Cord Size
16/3
Discharge Dia.
1 1/2 in
Body Dia.
11 in
Overall Height
49 in
Basket Dia.
38 3/4 in
Basin Dia.
38 3/4 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
1/2 in
Sump Pit Depth - Minimum
24 in
Body Diameter
11 in
Discharge Diameter
1 1/2 in

Details

Housing Material
Cast Bronze
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/2
Body Material
Cast Bronze
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
44 gpm
Motor Type
PSC
Hz
60 Hz
Discharge NPT
1-1/2" F
Switch Type - Pumps
Vertical
Thermal Protection
Auto
Off Point
4 in
Column Material
Stainless Steel
Base Material
Stainless Steel
Bearing Material
Carbon
GPM of Water @ 10 Ft. of Head
44
Cord Type
SJT
Features
An Automatic Float Type Switch, Double Shielded Ball Bearings at Both Ends
Input Phase AC
1
Duty
Continuous
GPM of Water @ 5 Ft. of Head
54
On Point
11 in
Float Material
Stainless Steel
Bearing Type
Sleeve
Amps
4 A
For Use With
Nonflammable Liquids Compatible with Pump Materials of Construction
Impeller Material
Stainless Steel
GPM of Water @ 15 Ft. of Head
30
Max. Liquid Temp.
200 Degrees F
Amps - Pumps
4.00
Motor RPM
1725
Item - Sump Pumps
Upright Sump Pump
Item
Pedestal Sump Pump
Max. Head
20 ft
Includes
Manual
Agency Compliance
cCSAus
Voltage - Pumps
120VAC
Pump Body Material
Cast Bronze
Impeller Material - Pumps
Stainless Steel
Insulation Class
B
Max. Head - Pumps
20 ft.
Discharge
1-1/4 in FNPT
Discharge Gender
Female
RPM
1,725 RPM
Flow Rate @ 5 Ft. of Head
54 gpm
Duty Cycle
Continuous
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
30 gpm
NEC Cord Designation
SJT
Alarm Included
No
Rated Voltage
120V AC
Standards
cCSAus
Application
For Pumping Clear Water Or Effluent from Wet Pits, Loading Docks, Boiler Dump Pits, Below Ground Vaults, Elevator Pits and Other Residential, Commercial And Industrial Applications, for Hot Water Applications Up to 200 Degrees Fahrenheit
Feet of Head - Maximum
20 ft
Volute Material
Brass
Rotation Speed - Maximum
1,725 RPM
Power Source
Corded Electric
Current
4 A
For Media Type
Clear Water, Trash Water
Flow Rate @ 10 ft of Head
44 gpm
Includes Alarm
No Alarm Included
Frequency
60 Hz
Horsepower
1/3 hp
Impeller Design
Vortex
Liquid Temperature - Maximum
200 Degrees F

Description

Pedestal Sump Pump, HP 1/3 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 4 in, On Point 11 in, Body Material Cast Bronze, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 54 gpm, Flow Rate @ 10 Ft. of Head 44 gpm, Flow Rate @ 15 Ft. of Head 30 gpm, Max. Diameter Solids 7/16 in, Min. Sump Pit Dia. 18 in, Body Dia. 11 in, Overall Height 49 in, Basin Dia. 38 3/4 in
