Shop DAYTON

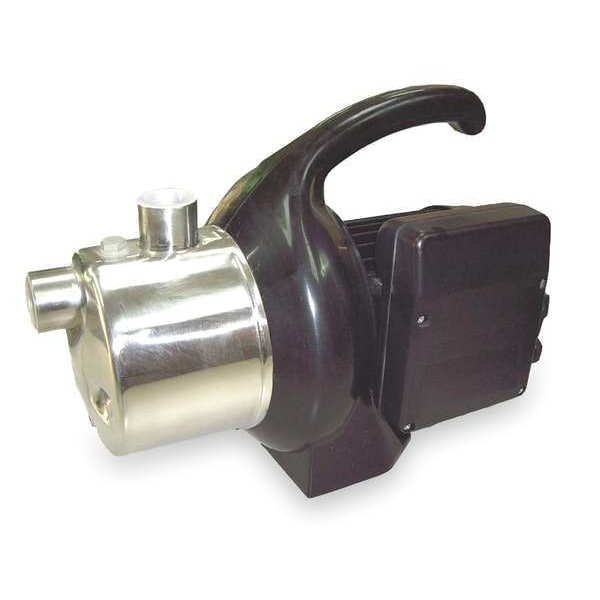

Utility Pump, 1/2 HP, 1Ph, 115V, 7.4 Amps

  • Mfr # 4CUK6

  • Zoro # G3388287

product price:
$
244.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Inlet
1 in NPT
Outlet
1 in NPT
HP
1/2 hp
Wetted Materials
Brass, Buna, Carbon, Ceramic, Stainless Steel, Thermoplastic
Voltage
115
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4CUK6
Zoro #
G3388287
UPC #
190735322642
Country of Origin
China

Dimensions

Length
14.5 in
Width
7 51/64 in
Height
10 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8 in
Cord Length
6 ft
Overall Width
7.8 in
Overall Height
10 in
Overall Length
14.5 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 in
Compatible Discharge Pipe Size
1 in
Solid Diameter (Maximum)
0.13 in
Intake Size
1 in
Inlet Diameter
1 in
Discharge Diameter
1 in
Motor Frame Size
56Y
Wire Rope Length
14.5 in

Details

Item
Utility Pump
Inlet
1 in NPT
Outlet
1 in NPT
HP
1/2 hp
Wetted Materials
Brass, Buna, Carbon, Ceramic, Stainless Steel, Thermoplastic
Voltage
115
Best Efficiency Range GPM @ Head
14 to 9 gpm @ 46 to 81 ft
Seal Material
Carbon, Ceramic
Suction Lift
25 ft
Housing Material
Stainless Steel
Impeller Type
Closed Impeller
Includes
(2) Garden Hose Adaptors
Max. Pressure
64 psi
GPH of Water @ 25 PSI
752
GPH of Water @ 5 PSI
960
Max. Head
148 ft
Max. Specific Gravity
1.0
Max. Case Pressure
96 psi
Duty
Continuous
Max. Liquid Temp.
90 Degrees F
Amps
7.4 A
GPH of Water @ 20 PSI
832
GPH of Water @ 35 PSI
634
GPH of Water @ 40 PSI
581
Motor Type
PSC
Hz
60
Agency Compliance
CSA, CUL
GPH of Water @ 30 PSI
700
Impeller Material
Stainless Steel
GPH of Water @ 15 PSI
871
Phase
Single
Inlet Pressure
32 psi
Motor Enclosure
Totally Enclosed Fan Cooled
GPH of Water @ 10 PSI
951
Standards
cCSAus Certified
Seal Type
Mechanical
Shaft Material
Steel
Horsepower
1/2 hp
Intake Type
FNPT
Flow Rate @ 120 ft of Head (Maximum)
14.5 gpm
Wetted Material
Brass, Buna, Carbon, Ceramic, Stainless Steel, Thermoplastic
Flow Rate @ 10 ft of Head (Maximum)
15.7 gpm
Flow Rate @ 80 ft of Head (Maximum)
14.9 gpm
Impeller Design
Closed
Specific Gravity (Maximum)
1
Maximum Feet of Head
145 ft
Duty Cycle
Continuous
Best Efficiency Flow
16.1 gpm
Discharge Type
NPT
Flow Rate @ 100 ft of Head (Maximum)
14.7 gpm
Nameplate Voltage
115V AC
Frequency
60 Hz
Maximum Media Temperature
90 Degrees F
Pump Housing Material
Stainless Steel
Best Efficiency Head
81 ft
Flow Rate @ 5 ft of Head (Maximum)
15.8 gpm
Flow Rate @ 40 ft of Head (Maximum)
15.1 gpm
Flow Rate @ 15 ft of Head (Maximum)
15.6 gpm
Flow Rate @ 50 ft of Head (Maximum)
15.2 gpm
Flow Rate @ 60 ft of Head (Maximum)
15 gpm
Flow Rate @ 20 ft of Head (Maximum)
15.4 gpm
Flow Rate @ 30 ft of Head (Maximum)
15.3 gpm
Shut Off Pressure (Maximum)
64 psi
Suction Lift (Maximum)
25 ft
Suction Lift - Maximum
25 ft
Hazardous Location Class
Not Rated
Shaft Seal Material
Carbon/Ceramic
Feet of Head (Maximum)
145 ft
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Media Temperature - Minimum
32 Degrees F
Discharge Orientation
Top
Priming
Manual
Number of Stages
1
Shaft Seal Type
Mechanical
Shut Off Pressure - Maximum
64 psi
Media Temperature - Maximum
90 Degrees F
Motor Speed - Maximum
3,450 RPM
Flow Rate @ 10 ft of Head - Maximum
15.7 gpm

Description

Utility Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1/2 hp, Nameplate Voltage 115V AC, Flow Rate @ 40 ft of Head (Maximum) 15.1 gpm, Flow Rate @ 60 ft of Head (Maximum) 15 gpm, Flow Rate @ 80 ft of Head (Maximum) 14.9 gpm, Maximum Feet of Head 145 ft, Compatible Intake Pipe Size 1 in, Intake Type FNPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 5 ft of Head (Maximum) 15.8 gpm
