Shop All Open Enclosure Drives
Dayton

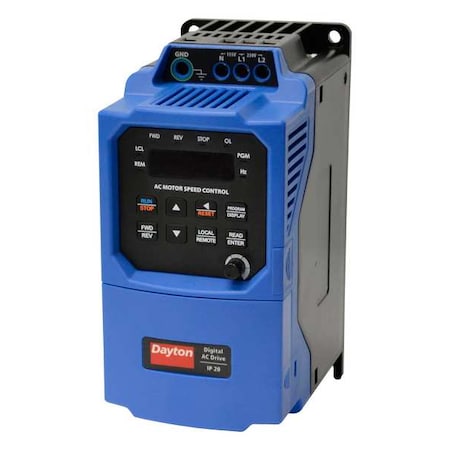

Variable Freq Drive, 2HP, 115/208-230V

product price: $358.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. HP 2 hp
  • Input Voltage 115/230V AC
  • Output Voltage 230V AC
  • Input Phase AC Single
  • Enclosure Open
See all product information

Product Information

Dimensions

Depth 5.1 in
Width 3.4 in
Height 7.25 in
Overall Width 3 3/8 in
Overall Depth 5 1/8 in
Overall Height 7 1/4 in

Details

Item Variable Frequency Drive
Max. HP 2 hp
Input Voltage 115/230V AC
Output Voltage 230V AC
Input Phase AC Single
Enclosure Open
Max. Output Amps 6.7 A
Output Phase AC Three
With Bypass / No Bypass No Bypass
With Line Contactor / No Line Contactor No Line Contactor
Displays Digital Display
Display Type Digital
Protection Current Limit, Electronic Inrush Current Limit (EICL), MOV Input Transient Suppression, Nuisance Tripping, Overload, Overvoltage, Regeneration Protection, Ride Through, Short Circuit, Under voltage
Start/Stop Control Manual
Key Pad Lockout Enclosure Padlock
Accepts Input Control Signal Yes
Adjustable Deceleration Time 0.3 to 180 sec
Input Frequency 50/60 Hz
Torque @ 1 Hz 100%
Standards UL, CSA, CE
Starting Torque 200%
Adjustable Acceleration Time 0.1 to 180 sec
Control Type Keypad
Dynamic Braking Yes
For Use With 3-Phase Inverter Duty or TENV Motor
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Output Frequency Range 0 to 240 Hz
Digital Readout Yes
Control Method Keypad
Application Actuators, Air Cleaners, Amusement Rides, and Sprayers, Ball Pitching Machines, Blowers, Boat Lifts, Bowling Alley Lane Cleaners, CNC, Conveyors, Door and Gate Openers, Drilling, Duct Cleaners, Dumbwaiters, Elevators and Hoists, Exercise Equipment, Fabric Processing, Fans, Feeders, Film Processing, Floor Cleaning, Food Processing, Garment Cutting, Grinding and Polishing, Hoppers, Horse Walkers, HV AC, Indexers, Irrigation, Laminating, Lift Station Pumps, Machine Tools, Medical, Milling, Mixers, Oven Conveyors, Packaging, Paint Blenders, Paper Handling, Portable Equipment Used with GFCIs, Pottery Wheels, Printing, Pumps, Range Hoods, Sandblasting, Saws, Sewing, Shakers, Stretch Wrap, Textile, Therapeutic Vibrators, Treadmills, Washing Machines, Wave Soldering, Web Processing, Wheelchair Lifts, Whole House V ACuums and Attic Fans, Winders and Unwinders, Wire Feeders, Wood and Metal Lathes and Cutters
Maximum Output Power 2 hp
Color Black/Blue/Gray
Enclosure Rating IP20
Output Type Digital
Maximum Output Current 6.7 A

Description

Variable Frequency Drive, Input Voltage 115/230V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 2 hp, Maximum Output Current 6.7 A, Output Voltage 230V AC, Output Phase AC Three, Output Frequency Range 0 to 240 Hz, Enclosure Rating IP20
