Dayton

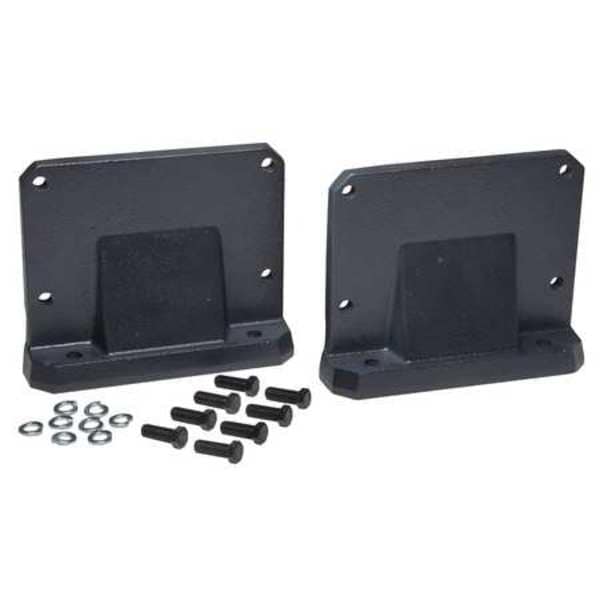

Vertical Mounting Base

product price: $153.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Worm Center Distance (In.) 3.25 in
  • Mounting Vertical
  • Mounting Plate Sold Separately
  • Dimension Y (In.) 1.750
  • Base Dia. (In.) 9.0 in
See all product information

Product Information

Dimensions

Dimension Y (In.) 1.750
Base Dia. (In.) 9.0 in
Dimension BD (In.) 9.0 in
Base Width (In.) 13.44 in
Dimension F (In.) 6.13 in
Dimension F1 (In.) 1.1811
Dimension BW (In.) 13.44 in
Dimension H (In.) 0.88 in
Bolt Hole Dia. (In.) 0.53 in
Dimension E (In.) 11.88 in
Overall Width 13.44 in
Bolt Circle Diameter 0.53 in

Details

Worm Center Distance (In.) 3.25 in
Mounting Vertical
Mounting Plate Sold Separately
Item Speed Reducer Mounting Base
For Use With Dayton Speed Reducers
For Worm Center Distance 3.25 in
Product Type Mounting Base
Mounting Orientation Vertical

Description

Speed Reducer Mounting Base, Product Type Mounting Base, For Use With Dayton Speed Reducers, For Worm Center Distance 3.25 in, Bolt Circle Diameter 0.53 in, Mounting Orientation Vertical, Overall Width 13.44 in, Includes -, Material -
