  11. Vibrator Motor, 1/200 HP, 1550 RPM, 115 V

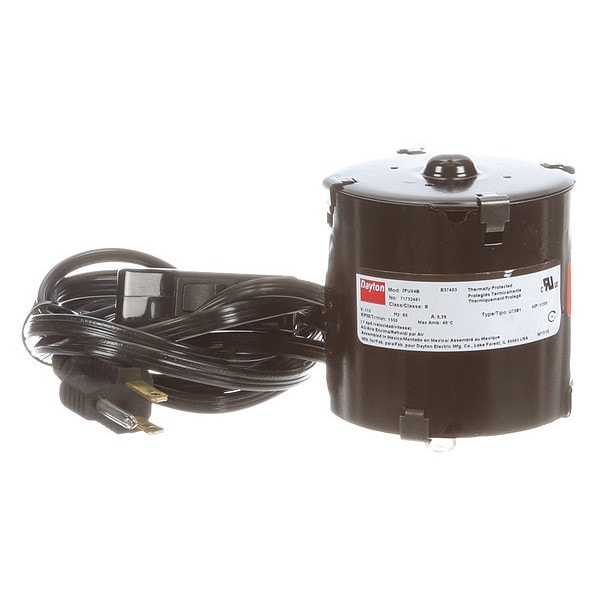

Dayton Vibrator Motor, 1/200 HP, 1550 RPM, 115 V 71732461M - main

Vibrator Motor, 1/200 HP, 1550 RPM, 115 V

  • Mfr # 71732461M

  • Zoro # G1034537

product price: $101.99
/ea
Free Shipping & Returns

Key Features

HP
1/200 hp
Force
2.5 lbf
Nameplate RPM
1,550 RPM
Velocity
1.33 in/sec
Motor Bearings
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71732461M
Zoro #
G1034537
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
3 1/4 in
Body Dia.
3 1/2 in

Details

HP
1/200 hp
Force
2.5 lbf
Nameplate RPM
1,550 RPM
Velocity
1.33 in/sec
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Air-Over
Voltage
115V AC
Item
Vibrator Motor
Motor Design
Shaded Pole
RPM Range
1,501-1,600
Standards
CSA Certified (244617), UL Recognized (E37403)
Motor Mounting Position
All Angle
Includes
9 ft 3-Conductor Cord Set
Ins. Class
B
Full Load Amps
0.50 A
Hz
60 Hz
Motor Thermal Protection
Auto
Phase
Single
Motor Mounting Type
C-Face
Ambient Temperature
40 Degrees C
Max. Ambient Temp.
40 Degrees C
On/Off Switch
On/Off Switch Included
No. of Speeds
1
Weight
2.97 lb
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Rotation
CWSE
Frame
3.3 in
Motor Service Factor
1
Usable @ 208V
Not Usable at 208V

Description

Vibrator Motor, Single Phase, Motor Design Shaded Pole, 1/200 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.50 A, 3.3 in Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Force 2.5 lbf, Velocity 1.33 in/sec, Motor Bearings Ball, Overall Length 3 1/4 in, Body Dia. 3 1/2 in
