  11. Washdown Motor, 1 HP, Face/Base, 60 Hz, CWSE
Shop All DC Washdown Motors
Leeson

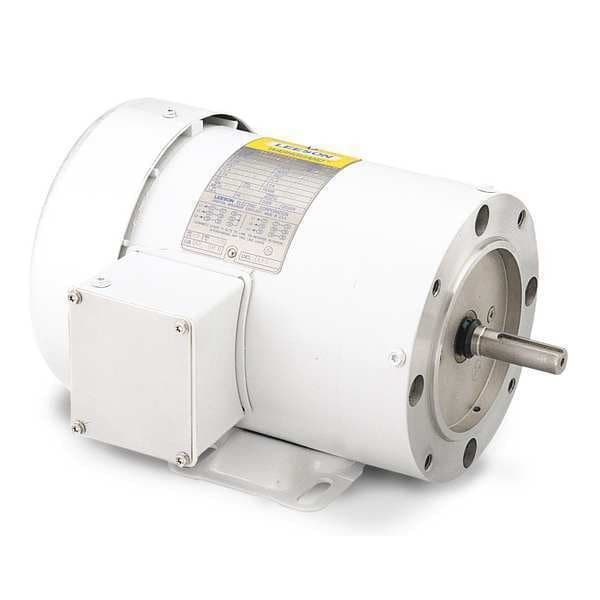

Washdown Motor, 1 HP, Face/Base, 60 Hz, CWSE

product price: $633.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Length Less Shaft 10 15/16 in
Overall Length 12 7/8 in
Body Dia. 7.38 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Washdown Brake Motor
Motor Design 3-Phase
Phase Three
HP 1
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56HC
Motor Frame Material Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Bearings Ball
Full Load Amps 3.2/1.6 A
Nominal Efficiency 85.5 %
Motor Application Washdown
Motor Mounting Type Rigid Base
Nameplate RPM 1,760
Frame Material Rolled steel
Application General Purpose
Hz 60 Hz
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Motor Service Factor 1.15
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
CC Number CC005A
Motor Shaft Rotation CWSE
Motor Mounting Position Horizontal
NEMA Design B
Motor Shaft Design Keyed
Standards BISSC Approved, CE, CSA Certified, UL Recognized
Green Certification or Other Recognition NEMA Premium(R) Rated
Weight 38 lb
No. of Speeds 1
Finish Painted
Conduit Box Location Exterior
Usable @ 200V No
Duty Cycle Continuous
Usable @ 208V Yes

Description

Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2/1.6 A, 56HC Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
