  11. Vibrator, Piston, Pneumatic/Air, 19.3 Lb.

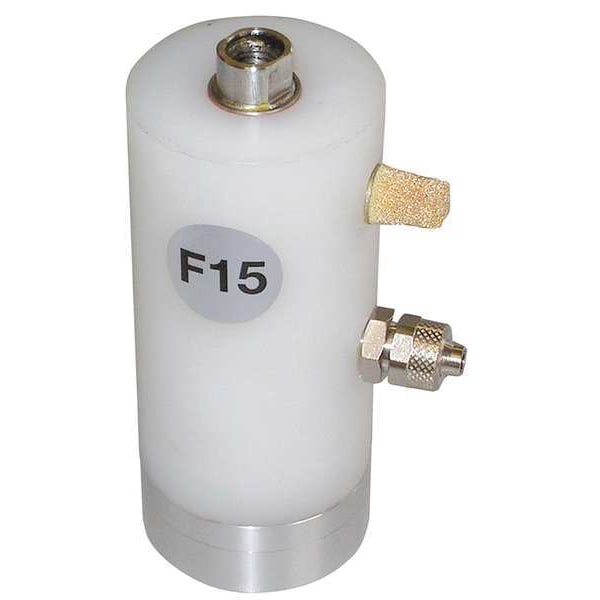

Dayton Vibrator, Piston, Pneumatic/Air, 19.3 Lb. 23Y178 - main

Vibrator, Piston, Pneumatic/Air, 19.3 Lb.

  • Mfr # 23Y178

  • Zoro # G5769057

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Piston
Force Rating
19.3 lb
CFM @ 80 PSI
2.8
Speed @ 60 psi
2150 VPM
Overall Length
2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
23Y178
Zoro #
G5769057
UPC #
190735190715
Country of Origin
Italy

Dimensions

Overall Length
2"
Overall Width
2"
Overall Height
4-1/2"
Inlet Connection Size
1/8 in
Outlet Connection Size
1/8 in

Details

Vibrator Type
Piston
Item
Pneumatic Vibrator
Force Rating
19.3 lb
CFM @ 80 PSI
2.8
Speed @ 60 psi
2150 VPM
Speed @ 80 psi
2340 VPM
dB @ 60 psi
81
Bin Weight Capacity
193 lb
dB @ 80 psi
87
Inlet Port
1/8" NPT
Outlet Port
1/8" BSPP
Duty
Continuous
Max. Pressure
90 psi
Muffler
1A325
Max. Temp.
212 Degrees F
Mounting Plate
Not required
Housing Material
Polymer
Mounting
Vertical or Horizontal
Application
Mining, Chemical Plants, Plastics, Manufacturing, Foundries and Paper Plants
CFM @ 60 psi
1.5
Pneumatic Vibrator Type
Piston
Force @ PSI
19.3 lbf @ 87 psi
Vibration Speed @ 80 psi
2,340 vpm
Number of Mounting Holes
4
Mount Type
Bolt-On
Maximum Operating Temperature
212 Degrees F
Air Flow Rate
2.8 cfm @ 87 psi
Maximum Bin Weight Capacity
193 lb
Maximum Vibration Speed
2,340 vpm
Maximum Force
19.3 lbf
Vibration Speeds @ PSI
2,150 vpm @ 60 psi, 2,340 vpm @ 80 psi
Maximum Inlet Pressure
90 psi
Inlet Connection Type
NPT
Outlet Connection Type
BSPP
Minimum Operating Temperature
-4 Degrees F
Mount Plate Included
No
Sound Level
90 dBA
Vibration Speed @ 60 psi
2,150 vpm
Duty Cycle
Continuous
Mounting Orientation
Horizontal, Vertical
Mount Plate Required
No

Description

Piston Vibrator, Housing Material Polymer, Outlet Connection Size 1/8 in, Outlet Connection Type BSPP, Air Flow Rate 2.8 cfm @ 87 psi, Maximum Force 19.3 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 2,340 vpm, Maximum Bin Weight Capacity 193 lb, Overall Height 1.97 in, Overall Length 6.07 in, Overall Width 1.97 in, Sound Level 90 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Piston, Force @ PSI 19.3 lbf @ 87 psi, Mount Type Bolt-On
