  11. Washdown Motor, 3 Ph, TEFC, 10 HP, 3525 rpm

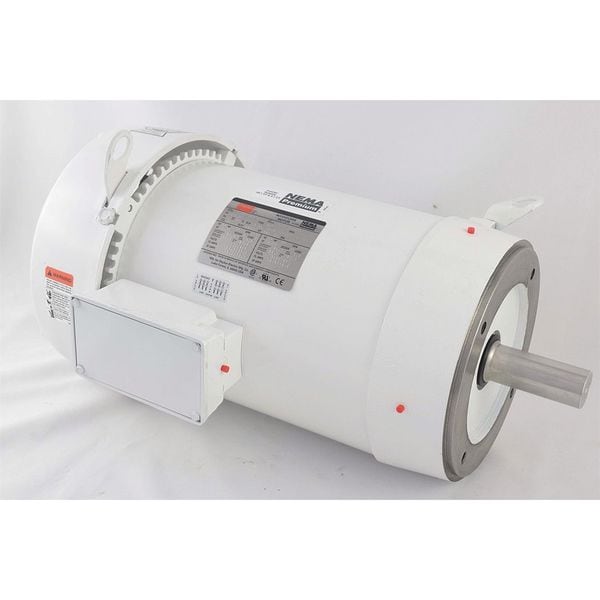

Dayton Washdown Motor, 3 Ph, TEFC, 10 HP, 3525 rpm 2DAM8 - main

Washdown Motor, 3 Ph, TEFC, 10 HP, 3525 rpm

  • Mfr # 2DAM8

  • Zoro # G1207543

product price: $3,710.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
215TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2DAM8
Zoro #
G1207543
UPC #
190735218402
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/4 in
Shaft Dia.
1 3/8 in
Body Dia.
9.63 in
Shaft Length
3 1/8 in
Overall Length
21 3/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
215TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Bearings
Ball
Frame Material
Epoxy Coated
Duty
Continuous
Motor Service Factor
1.15
Full Load Amps
23.1/11.6 A
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
91 %
Motor Shaft Design
Keyed
Drain Plugs
(2) in Conduit Box, (4) Each End
Endshields
Cast Aluminum
Ins. Class
F
Shaft Material
303
Motor Application
General Purpose
Conduit Box
Cast Aluminum with Buna N Gasketed Cover
CC Number
CC030A
Motor Mounting Type
C-Face
NEMA Design
B
Hz
60/50 Hz
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
3,515 RPM
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Inverter Rated
Includes
Side-Mounted Conduit Box
Duty Cycle
Continuous
Endshield Material
Aluminum
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,515 RPM, Voltage 230/460V AC, Full Load Amps 23.1/11.6 A, 215TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
