  11. Washdown Motor, 3 Ph, TEFC, 3 HP, 1765 rpm

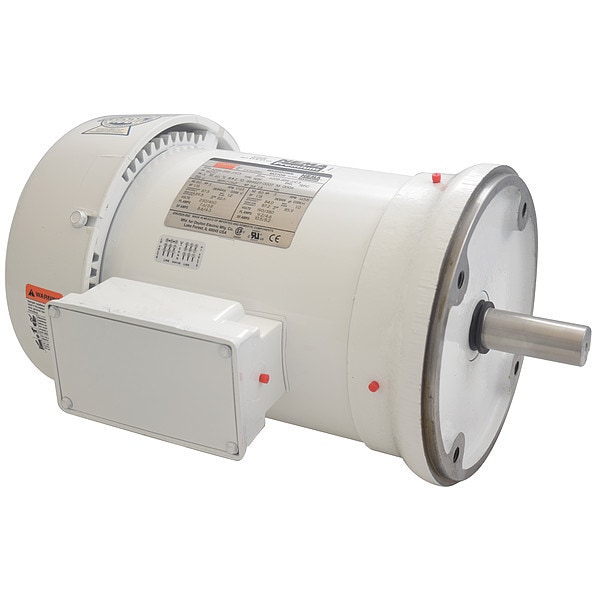

Dayton Washdown Motor, 3 Ph, TEFC, 3 HP, 1765 rpm 5XAU5BG - main

Washdown Motor, 3 Ph, TEFC, 3 HP, 1765 rpm

  • Mfr # 5XAU5BG

  • Zoro # G2070643

product price: $1,999.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU5BG
Zoro #
G2070643
UPC #
190735355572
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Shaft Length
2 5/8 in
Shaft Dia.
1 1/8 in
Body Dia.
9.13 in
Overall Length
16 3/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
182TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Duty
Continuous
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Bearings
Ball
Hz
60/50 Hz
Motor Shaft Rotation
CW/CCW
Inverter Rated
Inverter Rated
CC Number
CC030A
Motor Application
General Purpose
Frame Material
Epoxy Coated
NEMA Design
B
Footnotes
8, 11, 51
Endshields
Cast Aluminum
Nameplate RPM
1,765 RPM
Motor Service Factor
1.15
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Full Load Amps
7.6/3.8 A
Motor Mounting Position
Horizontal
Shaft Material
303
Ins. Class
F
Motor Mounting Type
C-Face
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Endshield Material
Aluminum
Duty Cycle
Continuous
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 182TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
