  11. Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

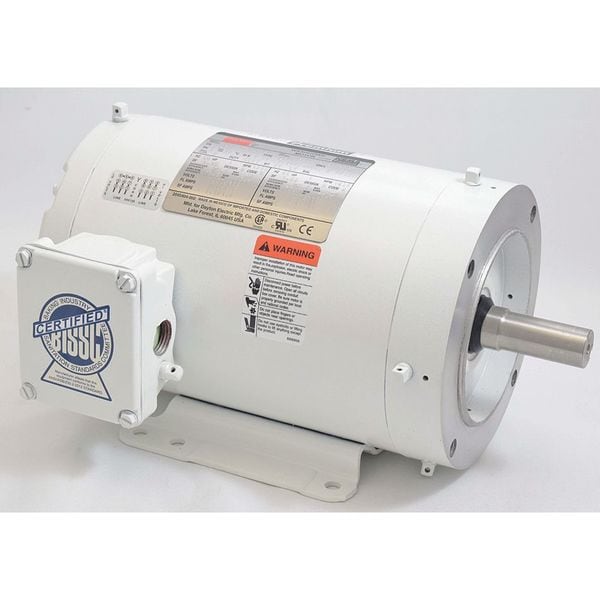

Dayton Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm 1TRZ2 - main

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

  • Mfr # 1TRZ2

  • Zoro # G2734331

product price: $1,081.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TRZ2
Zoro #
G2734331
UPC #
190735147658
Country of Origin
Mexico

Dimensions

Body Dia.
6.94 in
Shaft Dia.
7/8 in
Length Less Shaft
10 3/16 in
Overall Length
12 3/8 in
Shaft Length
2 1/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Conduit Box
Cast Oversized Gasketed
Motor Application
General Purpose
Motor Bearings
Ball
CC Number
CC030A
Includes
Side-Mounted Conduit Box
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Duty
Continuous
Frame Material
Epoxy Coated
Full Load Amps
3.0/1.5 A
Motor Mounting Position
Horizontal
Inverter Rated
Inverter Rated
Ins. Class
F
Shaft Material
303
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
85.5 %
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Shaft Design
Keyed
Nameplate RPM
1,750 RPM
Hz
60/50 Hz
NEMA Design
B
Drain Plugs
(2) in Conduit Box, (4) Each End
Endshields
Cast Aluminum
Duty Cycle
Continuous
Endshield Material
Aluminum
No. of Speeds
1
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
