Shop MARATHON

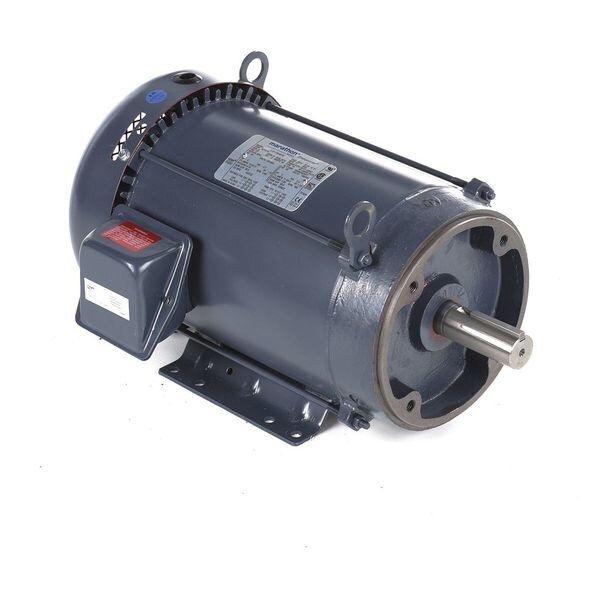

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM

  • Mfr # 215TTFBD6078
  • Zoro # G9816064
product price:
$
1,156.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1180 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
13.6/6.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
215TTFBD6078
Zoro #
G9816064
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
5
Nameplate RPM
1180 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
13.6/6.8 A
Frame
215TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
185 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Capacitor Required
No
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
13.6/6.8 A
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
Frequency
60 Hz
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
B
Product Type
General Purpose Motor
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,440/1,445/1,450 RPM
Application
General Purpose
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.6/6.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200
