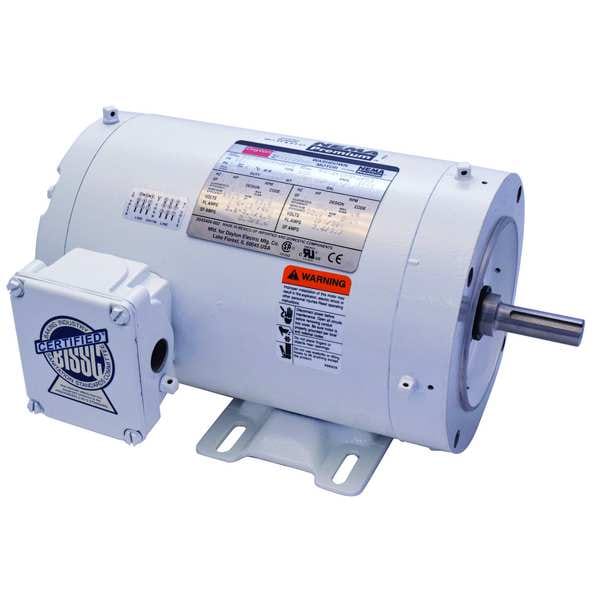

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm

DAYTON| Zoro #: G0581131| Mfr #: 1TRZ6

$416.50 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0581131 Mfr #: 1TRZ6
Motor Service Factor: 1.15Max. Ambient Temp.: 40 Degrees C
Inverter Rated: YesMotor Enclosure Design: Totally Enclosed Nonventilated
Motor Bearings: BallPhase: 3
HP: 1Motor Shaft Rotation: CW/CCW
Motor Shaft Design: KeyedMotor Thermal Protection: None
Ins. Class: FDuty: Continuous
Motor Design: 3-PhaseMotor Application: Washdown
Item: Washdown MotorDrain Plugs: (4) Each End, (2) In Conduit Box
Standards: UL Recognized (E47479), CSA Certified (LR63596), USDA ApprovedVoltage Compatibility: 460, 230/460, 220-230/460
Shaft Dia.: 5/8"Hz: 60
Frame: 56cConduit Box: Cast Oversized Gasketed
NEMA Design: BNameplate RPM: 1750
Full Load Amps: 3.3-3.2/1.6Frame Material: Epoxy Coated
Voltage: 230/460Shaft Material: 303 Stainless Steel
Motor Mounting Position: All AngleShaft Length: 1-7/8"
Motor Mounting Type: Face/BaseOverall Length: 11-9/16"
Length Less Shaft: 9-5/8"Nominal Efficiency: 80.0%
Country of Origin (subject to change): Mexico

Product Description

Washdown Motor, 3-Phase, 1 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 3.3-3.2/1.6, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11-9/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 9-5/8 In., Continuous Duty, Frame Material Epoxy Coated, Shaft Material 303 Stainless Steel
