Shop LEESON

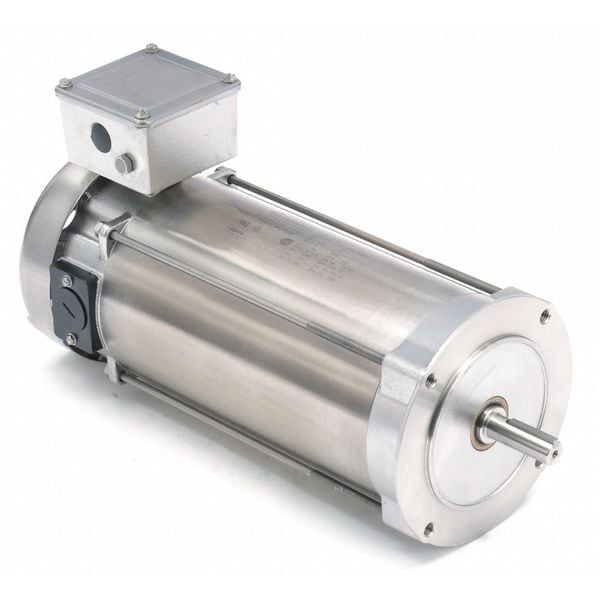

DC Washdown Motor, 1 HP, 180VDC, 16-3/8in L

  • Mfr # 109089.00

  • Zoro # G4447899

product price:  $1,619.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
Phase
Single
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
109089.00
Zoro #
G4447899
UPC #
691720343142
Country of Origin
United States

Dimensions

Length Less Shaft
14 7/16 in
Overall Length
16 3/8 in
Body Dia.
6.5 in
Shaft Length
2 1/16 in
Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Body Diameter
6.5 in

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
40 Degrees C
Bearings
Ball
Nameplate RPM
1,750 RPM
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Brush Type
Carbon
Full Load Amps
5.0 A
Standards
BISSC Approved, CSA Certified, UL Recognized
Voltage Compatibility
180V DC
Ins. Class
F
Rotation
CW/CCW
Motor Application
Washdown
RPM Group
1701-1800
Full Load Torque
36.0 in-lb
Motor Mounting Type
Face
Nominal Efficiency
85.3 %
Shaft Material
Stainless Steel
Motor Shaft Rotation
CCW, CW
Motor Shaft Design
Keyed
Motor Service Factor
1
Motor Bearings
Ball
Duty Cycle
Continuous
Weight
59 lb
Conduit Box Location
Exterior
Usable @ 200V
No
Usable @ 208V
No
No. of Speeds
1
Conduit Box Position
F3
Series
Washguard
Ambient Temperature - Maximum
40 Degrees C
Full Load Current
5.0 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Stainless Steel
Number of Speeds
1
Frame Finish
Unfinished
Bearing Type
Ball
Application
Washdown
Product Type
DC Washdown Motor
Nameplate Service Factor
1
Nameplate Voltage
180V DC
Shaft Design
Keyed
Insulation Class
F
Manufacturers Warranty
1 yr

Description

DC Washdown Motor,1 HP,1750,56C,180V
