  11. Washdown Motor, 3 Ph, TENV, 1/2 HP, 1750 rpm

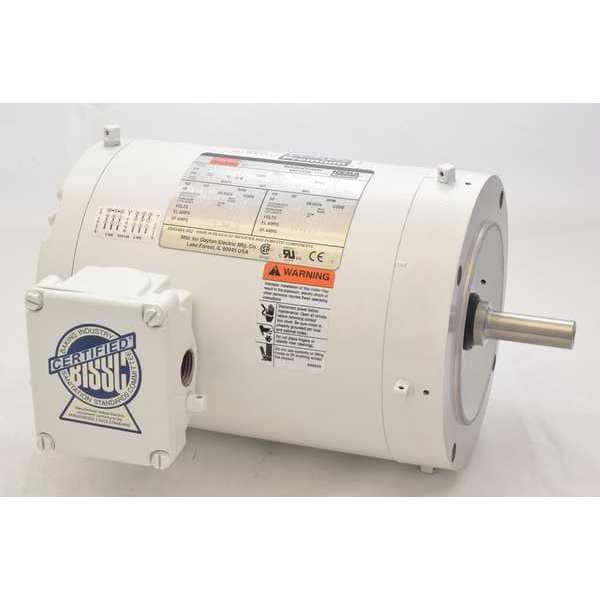

Dayton Washdown Motor, 3 Ph, TENV, 1/2 HP, 1750 rpm 1TTB6BG - main

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1750 rpm

  • Mfr # 1TTB6BG

  • Zoro # G3086377

product price: $1,192.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TTB6BG
Zoro #
G3086377
UPC #
190735147832
Country of Origin
Mexico

Dimensions

Body Dia.
6.5 in
Length Less Shaft
9 3/16 in
Overall Length
11 1/4 in
Shaft Dia.
5/8 in
Shaft Length
2 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nominal Efficiency
80 %
Motor Application
General Purpose
Application
Washdown
Conduit Box
Cast Oversized Gasketed
Ins. Class
F
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Full Load Amps
1.6/8 A
Motor Bearings
Ball
CC Number
CC030A
Motor Mounting Type
C-Face
Motor Service Factor
1.15
Footnotes
3,51
Motor Mounting Position
Horizontal
Frame Material
Epoxy Coated
Inverter Rated
Inverter Rated
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
NEMA Design
B
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
1,750 RPM
Endshields
Cast Aluminum
Duty
Continuous
Drain Plugs
(2) in Conduit Box, (4) Each End
Motor Shaft Design
Keyed
Hz
60/50 Hz
Shaft Material
303
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 1.6/8 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
