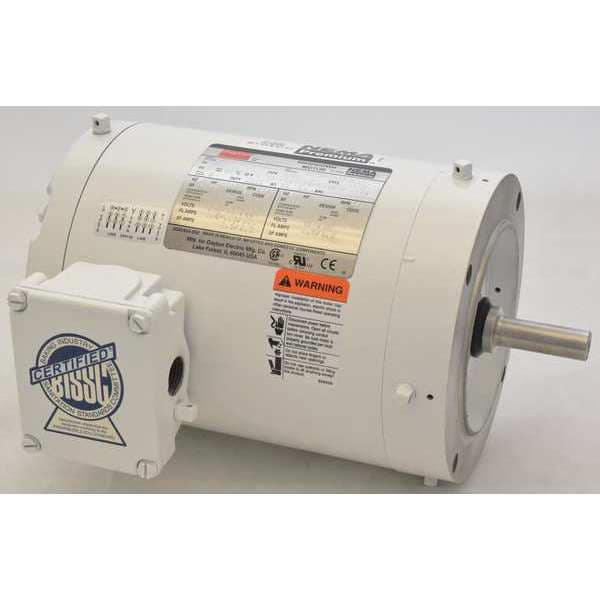

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm

DAYTON| Zoro #: G2271376| Mfr #: 1TTB5BG

$624.38 /ea

This item ships free. Details.Standard ground shipping.
Details:
Item: Washdown Motor
Shaft Length: 2"
Frame Material: Epoxy Coated
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2271376 Mfr #: 1TTB5BG
Item: Washdown MotorShaft Length: 2"
Frame Material: Epoxy CoatedMotor Application: Washdown
Duty: ContinuousMotor Thermal Protection: None
Footnotes: 3,51RPM Range: 1701-1800
Overall Length: 11-1/4"Standards: UL Recognized (E47479), CSA Certified (258525), USDA Approved
Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460Drain Plugs: (4) Each End, (2) In Conduit Box
Endshields: Cast AluminumBody Dia.: 6-1/2"
Application: WashdownMotor Design: 3-Phase
Phase: 3Motor Shaft Rotation: CW/CCW
Motor Enclosure Design: Totally Enclosed NonventilatedFrame: 56c
Motor Mounting Type: FaceMotor Mounting Position: All Angle
Full Load Amps: 2.3/1.2Hz: 60/50
Motor Bearings: BallInverter Rated: Yes
HP: 3/4NEMA Design: B
Shaft Material: 303 Stainless SteelIns. Class: F
Motor Shaft Design: KeyedMax. Ambient Temp.: 40 Degrees C
Conduit Box: Cast Oversized GasketedShaft Dia.: 5/8"
Motor Service Factor: 1.15Voltage: 230/460
Nameplate RPM: 1745Length Less Shaft: 9-1/4"
Nominal Efficiency: 82.5%Country of Origin (subject to change): Mexico

Description

Washdown Motor, 3-Phase, 3/4 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.7-2.5/1.25, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 10-9/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-1/2 In., Length Less Shaft 8-5/8 In., Continuous Duty, Frame Material Epoxy Coated
