Shop LEESON

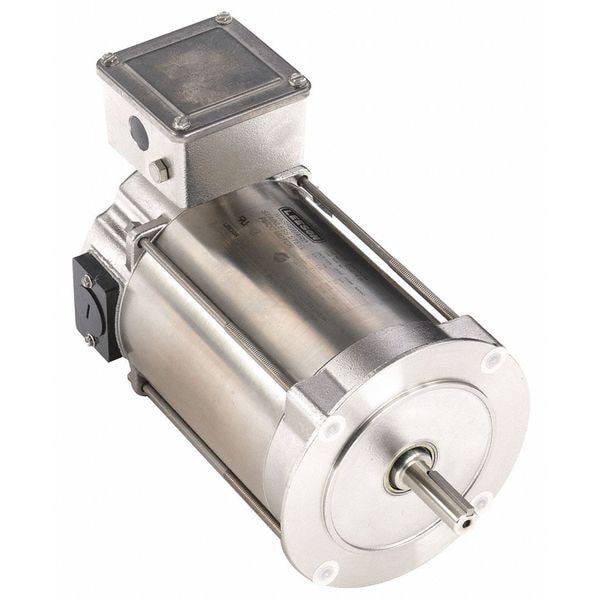

DC Washdown Motor, 3.1A, 11-13/16 in. L

  • Mfr # 109078.00

  • Zoro # G4447941

product price:
$
1,006.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet
Phase
Single
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109078.00
Zoro #
G4447941
UPC #
691720343036
Country of Origin
United States

Dimensions

Body Dia.
6.5 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Length Less Shaft
9 7/8 in
Overall Length
11 13/16 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Frame Size
56C
Wire Rope Length
11 13/16 in
Length
11 13/16 in

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet
Phase
Single
HP
1/4
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Mounting Type
Face
Standards
CSA Certified, UL Recognized
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
RPM Group
1701-1800
Rotation
CW/CCW
Voltage Compatibility
90V DC
Nameplate RPM
1,750 RPM
Brush Type
Carbon
Motor Application
Washdown
Bearings
Ball
Full Load Amps
3.1 A
Max. Ambient Temp.
40 Degrees C
Full Load Torque
9.0 in-lb
Ins. Class
F
Motor Bearings
Ball
Motor Service Factor
1
Motor Shaft Design
Keyed
Nominal Efficiency
67.5 %
Motor Shaft Rotation
CCW, CW
Usable @ 208V
No
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
No
Conduit Box Location
Exterior
Weight
38 lb
Conduit Box Position
F3
Series
Washguard
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Number of Speeds
1
Shaft Design
Keyed
Bearing Type
Ball
Application
Washdown
Nameplate Voltage
90V DC
Frame Material
Stainless Steel
Nameplate Service Factor
1
Product Type
DC Washdown Motor
Ambient Temperature - Maximum
40 Degrees C
Full Load Current
3.1 A
Insulation Class
F
Frame Finish
Unfinished

Description

DC Washdown Motor,1/4 HP,1750,56C,90V
