  11. Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm

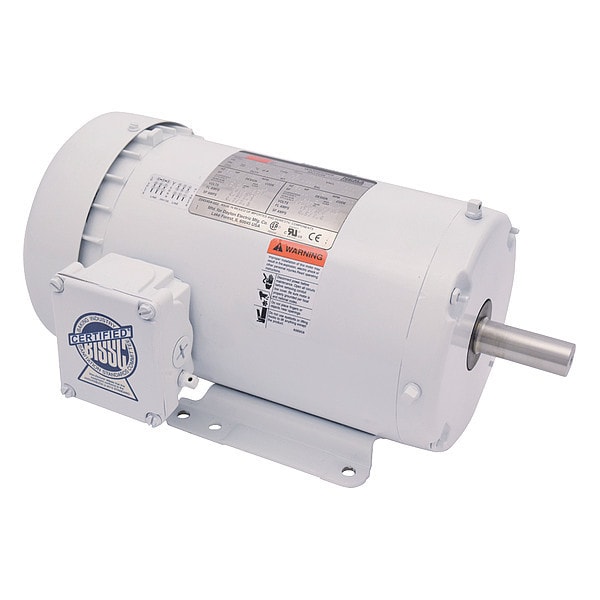

Dayton Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm 5XAT9BG - main

Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1750 rpm

  • Mfr # 5XAT9BG

  • Zoro # G3317221

product price: $702.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAT9BG
Zoro #
G3317221
UPC #
190735355510
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 in
Overall Length
14 5/16 in
Shaft Dia.
7/8 in
Shaft Length
2 5/16 in
Body Dia.
6.63 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Inverter Rated
Inverter Rated
Motor Bearings
Ball
Endshields
Cast Aluminum
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Duty
Continuous
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Mounting Type
Rigid Base
Ins. Class
F
Frame Material
Epoxy Coated
Motor Mounting Position
Horizontal
Nominal Efficiency
86.5 %
Motor Application
General Purpose
NEMA Design
B
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Footnotes
8, 11
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Shaft Material
303
Nameplate RPM
1,755 RPM
CC Number
CC030A
Hz
60/50 Hz
Full Load Amps
4.3/2.1 A
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Duty Cycle
Continuous
Endshield Material
Aluminum
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 145T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
