  11. Washdown Motor, TEFC, 2 HP, 1725 rpm, 56C

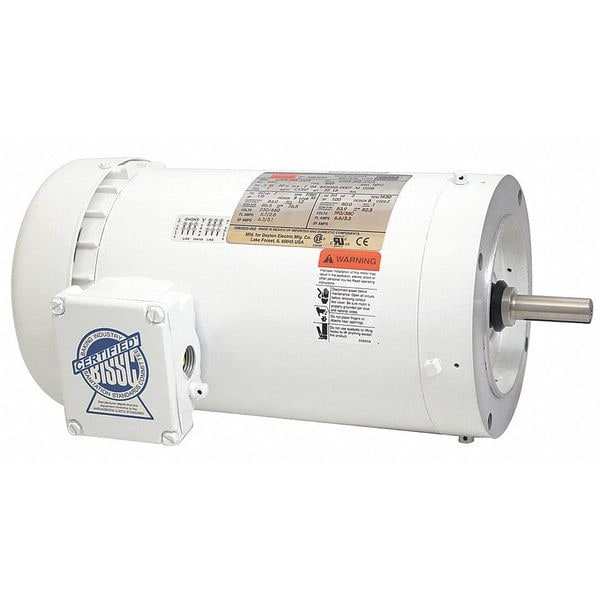

Dayton Washdown Motor, TEFC, 2 HP, 1725 rpm, 56C 48ZJ97 - main

Washdown Motor, TEFC, 2 HP, 1725 rpm, 56C

  • Mfr # 48ZJ97

  • Zoro # G8095355

product price: $1,166.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48ZJ97
Zoro #
G8095355
UPC #
190735905227
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6.5 in
Length Less Shaft
10 3/4 in
Overall Length
12 5/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Max. Ambient Temp.
40 Degrees C
Hz
60/50 Hz
NEMA Design
B
Motor Application
General Purpose
Nominal Efficiency
86.5 %
Standards
CSA (258525), UL (E47479)
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Inverter Rated
Not Inverter Rated
Motor Mounting Position
Horizontal
Includes
Shaft Key
Full Load Amps
6.2/3.1 A
Application
Washguard
CC Number
CC030A
Endshields
Cast Aluminum
Conduit Box
Oversize Cast Aluminum with Nitrile Gasket
Nameplate RPM
1,750 RPM
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty
Continuous
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Mounting Type
C-Face
Shaft Material
Stainless Steel
Drain Plugs
(2) in Conduit Box
Duty Cycle
Continuous
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 6.2/3.1 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Inverter Rating Not Applicable, Motor Frame Material Steel
