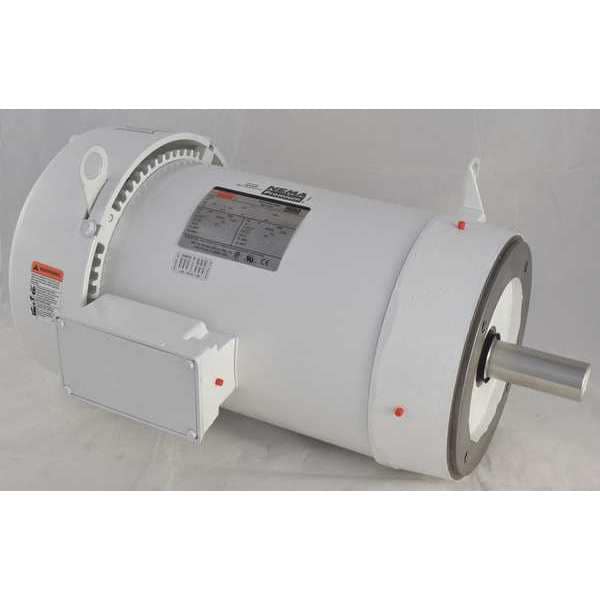

Dayton Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 3520 rpm 5XAU9BG - main

Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 3520 rpm

  • Mfr # 5XAU9BG

  • Zoro # G0822857

product price: $3,482.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
Phase
Three
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU9BG
Zoro #
G0822857
UPC #
190735355619
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/4 in
Body Dia.
10.75 in
Overall Length
21 3/8 in
Shaft Length
3 1/8 in
Shaft Dia.
1 3/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
213TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Endshields
Cast Aluminum
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Motor Application
General Purpose
Shaft Material
303
Footnotes
3, 12, 51
Hz
60/50 Hz
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Inverter Rated
Inverter Rated
Motor Bearings
Ball
Frame Material
Epoxy Coated
NEMA Design
B
Duty
Continuous
Nominal Efficiency
91 %
Motor Service Factor
1.15
CC Number
CC030A
Motor Mounting Type
C-Face
Full Load Amps
17.4/8.7 A
Motor Mounting Position
Horizontal
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Nameplate RPM
3,520 RPM
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,520 RPM, Voltage 230/460V AC, Full Load Amps 17.4/8.7 A, 213TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
