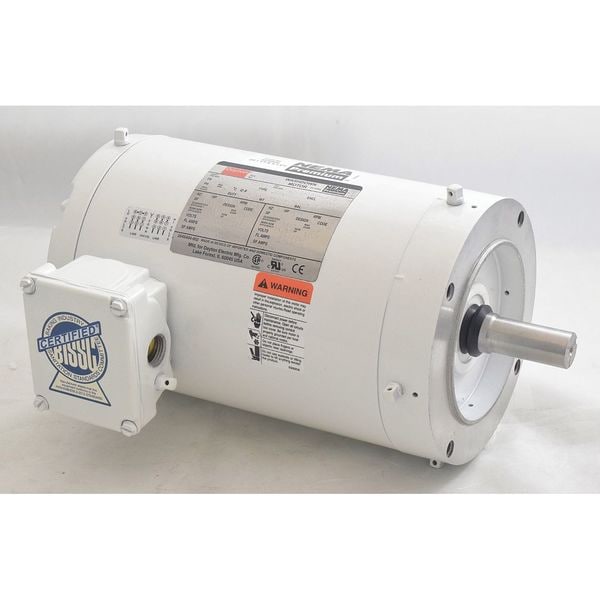

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm

DAYTON| Zoro #: G2012245| Mfr #: 1TTB8

$524.15 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2012245 Mfr #: 1TTB8
Voltage: 208-230/460Motor Shaft Design: Keyed
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Item: Washdown MotorPhase: 3
Ins. Class: FInverter Rated: Yes
Max. Ambient Temp.: 40 Degrees CShaft Material: 303 Stainless Steel
Motor Application: WashdownConduit Box: Cast Oversized Gasketed
Motor Enclosure Design: Totally Enclosed NonventilatedDrain Plugs: (4) Each End, (2) In Conduit Box
Motor Mounting Position: All AngleHP: 1-1/2
Motor Thermal Protection: NoneMotor Design: 3-Phase
NEMA Design: BDuty: Continuous
Standards: UL Recognized (E47479), CSA Certified (LR63596), USDA ApprovedVoltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Frame Material: Epoxy CoatedShaft Length: 2"
Overall Length: 13-1/8"Motor Service Factor: 1.00
Nominal Efficiency: 84.0%Motor Mounting Type: Face
Hz: 60Length Less Shaft: 11-1/8"
Shaft Dia.: 7/8"Nameplate RPM: 1740
Body Dia.: 6-1/2"Full Load Amps: 4.5-4.2/2.1
Frame: 145TCCountry of Origin (subject to change): United States

Product Description

Washdown Motor, 3-Phase, 1-1/2 HP, 1740 Nameplate RPM, Voltage 208-230/460, Phase 3, 145TC Frame, Totally Enclosed Nonventilated, Full Load Amps 4.5-4.2/2.1, 60 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.00, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13-1/8 In., Shaft Dia. 7/8 In., Shaft Length 2 In., Body Dia. 6-1/2 In., Length Less Shaft 11-1/8 In., Continuous Duty, Frame Material Epoxy Coated
