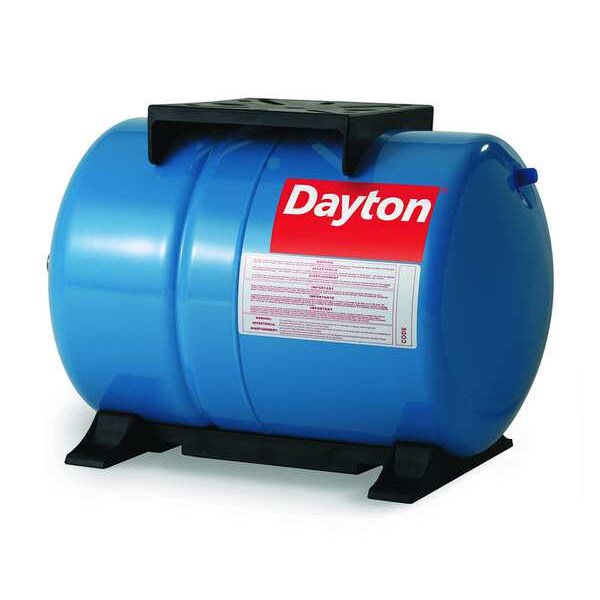

Water Tank, 17 1/2 H x 11 13/32 Dia

  • Zoro #: G0349291
  • Mfr #: 3GVT4
$135.99
  • Agency Compliance: NSF/WSC
  • Inlet Distance (In.): -
  • Length (In.): -
See full product details
This item ships free.

Dayton #3GVT4 Specifications

  • Zoro #: G0349291
  • Mfr #: 3GVT4
Agency Compliance: NSF/WSC Inlet Distance (In.): -
Length (In.): - Tank Style: Horizontal
Gallons Drawdown @ 50-70 PSI: 1.25 Precharge Pressure (PSI): 30
Standard Tank Equivalent (Gal.): 12 Item: Water Tank
Manufacturers Warranty Length: 5 yr Type: Precharged
Max. Temp. (F): 140 Outlet Distance (In.): -
Gallons Drawdown @ 20-40 PSI: 1.9 Gallons Drawdown @ 60-80 PSI: 1.1
Gallons Drawdown @ 80-100 PSI: 0.9 Gallons Drawdown @ 30-50 PSI: 1.4
Construction Material: Steel Net Boiler Output x BtuM: -
Tank (Gal.): 5.3 PSI Gauge NPT (In.): -
Pump Mount: Yes Air Volume Control NPT (In.): -
Max. Working Pressure (PSI): 125 Dia. (In.): 11-13/32
Acceptance Factor: 0.40 Height (In.): 17-1/2
Gallons Drawdown @ 40-60 PSI: 1.4 Inlet/Outlet NPT (In.): 3/4 M
Diaphragm: Butyl Rubber Gallons Drawdown @ 70-90 PSI: 1
Overall Height: 17 1/2 in Drawdown @ 40-60 PSI: 1.4 gal
Tank Orientation: Horizontal Tank Capacity: 5.3 gal
Drawdown @ 60-80 PSI: 1.1 gal Drawdown @ 70-90 PSI: 1.0 gpm
Inlet: 3/4 in Precharge Pressure: 30 psi
Drawdown @ 80-100 PSI: 0.9 gpm Body Material: Steel
Drawdown @ 30-50 PSI: 1.4 gpm Diameter: 11 13/32 in
Inlet Gender: Male Drawdown @ 20-40 PSI: 1.9 gal
Drawdown @ 50-70 PSI: 1.25 gpm Max. Water Temp.: 140 Degrees F
Country of Origin (subject to change): Taiwan, Province of China
Feedback Help us improve our product information

Description

Water Tank, Tank Capacity 5.3 gal, Tank Orientation Horizontal, Precharge Pressure 30 psi, Body Material Steel, Max. Water Temp. 140 Degrees F, Drawdown @ 20-40 PSI 1.9 gal, Drawdown @ 30-50 PSI 1.4 gpm, Drawdown @ 40-60 PSI 1.4 gal, Drawdown @ 50-70 PSI 1.25 gpm, Drawdown @ 60-80 PSI 1.1 gal, Drawdown @ 70-90 PSI 1.0 gpm, Drawdown @ 80-100 PSI 0.9 gpm, Overall Height 17 1/2 in, Diameter 11 13/32 in, Inlet 3/4 in, Manufacturers Warranty Length 5 yr

Restrictions and Compliance

Hazardous material
This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
