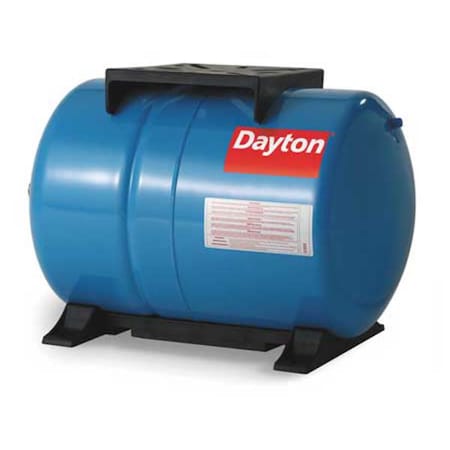

Water Tank, 20 51/64 H x16 5/16 Dia

DAYTON| Zoro #: G1586715| Mfr #: 3GVT5

$223.45 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1586715 Mfr #: 3GVT5
Acceptance Factor: 0.40Pump Mount: Yes
Construction Material: SteelAgency Compliance: NSF/WSC
Manufacturers Warranty Length: 5 yearsItem: Water Tank
Type: PrechargedTank (Gal.): 14
Standard Tank Equivalent (Gal.): 30Tank Style: Horizontal
Gallons Drawdown @ 20-40 PSI: 5.1Gallons Drawdown @ 30-50 PSI: 3.7
Gallons Drawdown @ 40-60 PSI: 3.8Gallons Drawdown @ 50-70 PSI: 3.3
Gallons Drawdown @ 60-80 PSI: 3.0Gallons Drawdown @ 70-90 PSI: 2.7
Gallons Drawdown @ 80-100 PSI: 2.4Precharge Pressure (PSI): 30
Height (In.): 20-51/64Dia. (In.): 16-5/16
Length (In.): 19-3/4Inlet/Outlet NPT (In.): 3/4 M
Max. Working Pressure (PSI): 125Diaphragm: Butyl Rubber
Max. Temp. (F): 140Country of Origin (subject to change): Taiwan

Product Description

Water Tank, Precharged, Tank 14 Gal., Horizontal Tank Style, 5.1 Gallons Drawdown @ 20-40 PSI, 3.7 Gallons Drawdown @ 30-50 PSI, 3.8 Gallons Drawdown @ 40-60 PSI, 3.3 Gallons Drawdown @ 50-70 PSI, Precharge Pressure 30 PSI, Height 20 51/64 In., Dia. 16 5/16 In., Length 19 3/4 In., Inlet/Outlet NPT 3/4 M In., Max. Working Pressure 125 PSI, Pump Mount, Agency Compliance NSF/WSC, Warranty Length 5 Years

Restrictions and Compliance

*3: Hazardous material
This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
