  9. Whole House Fan, 30 In, Direct Dr, 120 V
This item is Discontinued.

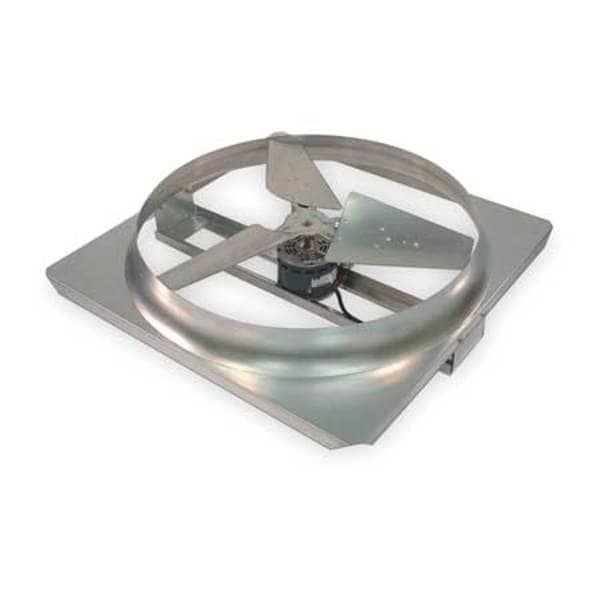

Dayton Whole House Fan, 30 In, Direct Dr, 120 V 3EAU2

Whole House Fan, 30 In, Direct Dr, 120 V (Discontinued)

  • Mfr # 3EAU2
  • Zoro # G0489535
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3EAU2
Zoro #
G0489535
UPC #
190735281949
Country of Origin
United States

Dimensions

Blade Dia.
30 in
Width (In.)
34 in
Height (In.)
9 in
Power Cord Length (Ft.)
Hardwired
Depth (In.)
34 in
For Cut-Out Width
34 in
Overall Width
34 in
Overall Height
9 in
Profile Height Family
High
Overall Depth
34 in
For Cut-Out Height
34 in
Blade Diameter
30 in
Power Cord Length
Hardwired

Details

Exhaust/Supply Fan Item
Exhaust Fan
Type
Direct Drive
Fan Voltage
115V AC
Coverage (Square-Ft.)
1,000
CFM High
6,000
Drive Package Included
No
Propeller Material
Steel
Item
Whole House Fan
HP
1/4 hp
Motor Type
Permanent Split Capacitor
Agency Compliance
UL, cUL
Hz
60
Bearing Type
Sleeve
Ceiling Shutter
3C511, 4C225
Housing Finish
Galvanized
Phase
1
Fan RPM
795/610
Includes
12 Hour Timer
Speed
2
Amps
2.3/1.6
Requires
Ceiling Shutter
CFM Low
4,500
Mounting Location
Ceiling
Number of Blades
3
Watts
270/190
Housing Material
Steel
Exhaust Airflow @ 0.100 in SP
5,020 cfm
Includes Dehumidistat
No
Frame Finish
Powder Coated
Includes Motor
Yes
Speed Controllable
Yes
Nameplate Voltage
115V AC
Full Load Current
2.3 A
Standards
UL/cUL
Motor Speed
795 RPM
Free Area
10 sq ft
Noise Level @ 0.100 in SP @ 5 ft
16 sones
Vent Design
Ductless
Mounting Orientation
Horizontal
Maximum Coverage Area
1,000 sq ft
Motor Horsepower
1/4 hp
Exhaust Airflow @ 0.000 in SP
5,900 cfm
Wattage
270 W
Maximum Airflow
6,000 cfm
Ventilation Type
Exhaust
Maximum Noise Level
17 sones
Drive Type
Direct Drive
Noise Level @ 0.000 in SP @ 5 ft
17 sones
Motor Enclosure
Open Dripproof
Electrical Connection
Hardwired
Fan Style
Whole-House
Blade Material
Steel
Number of Fans
1
Assembled
Assembled
Control Type
Switch
Number of Speeds
2
Includes Grill
No
Frequency
60 Hz
Frame Material
Steel
High-Efficiency Motor
No
Coverage Area
1,000 sq ft
Rough Opening Type
Square
Quiet Design
No
For High-Static Pressure Applications
No

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design No, Number of Speeds 2, Nameplate Voltage 115V AC, Speed Controllable Yes, Blade Diameter 30 in, Drive Type Direct Drive, Maximum Airflow 6,000 cfm, Maximum Noise Level 17 sones, Wattage 270 W, Coverage Area 1,000 sq ft, Rough Opening Type Square, For High-Static Pressure Applications No, High-Efficiency Motor No, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Not Applicable, Standards UL/cUL
