  6. Wshdwn Motor, TEFC, 1/2 HP, 1750rpm, 180VDC

This item is Discontinued.

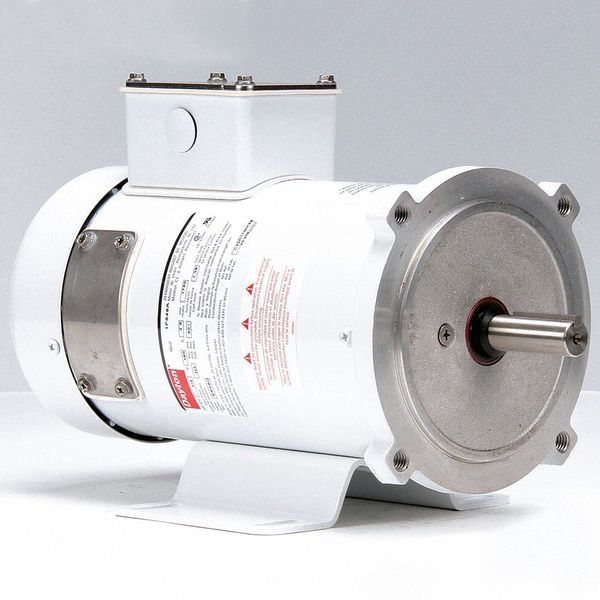

Dayton Wshdwn Motor, TEFC, 1/2 HP, 1750rpm, 180VDC 1F648A

Wshdwn Motor, TEFC, 1/2 HP, 1750rpm, 180VDC (Discontinued)

  • Mfr # 1F648A
  • Zoro # G2403046
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F648A
Zoro #
G2403046
UPC #
190735141502
Country of Origin
United States

Dimensions

Length Less Shaft
9 7/8 in
Shaft Length
1 7/8 in
Overall Length
13 in
Shaft Dia.
5/8 in

Details

Item
Washdown Motor
Motor Design
Permanent Magnet DC
HP
1/2
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Standards
UL Recognized (E47479)
Max. Ambient Temp.
40 Degrees C
Full Load Torque
18.3 in-lb
Features
Removable Base
Ins. Class
H
Motor Mounting Type
Face/Base
Voltage Compatibility
180V DC
Motor Application
Washdown
RPM Group
1701-1800
Full Load Amps
3.5 A
Bearings
Ball
Rotation
CW/CCW
Nameplate RPM
1,750
NEMA Design
H
Motor Shaft Rotation
CCW, CW
Motor Bearings
Ball
Usable @ 208V
No
Removable Base
Yes
No. of Speeds
1
Motor Sub Application
Aeration Fan
Usable @ 200V
No

Description

Washdown Motor,1/2 HP,1750,56C,180V

Restrictions

Hazardous material
