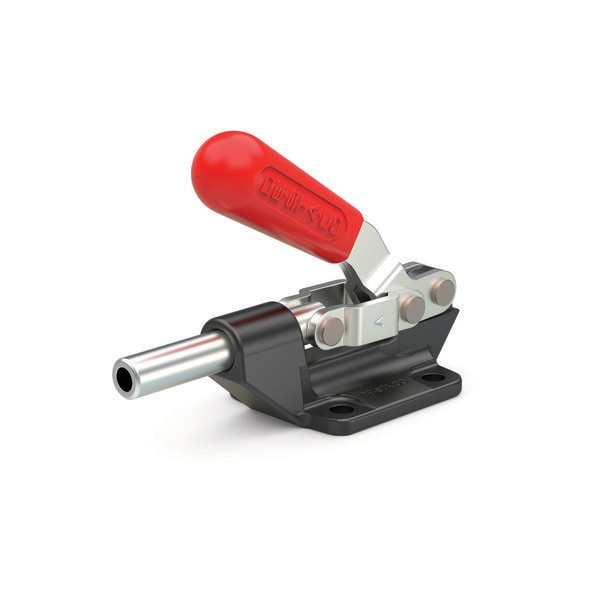

De-Sta-Co

Clamp

original price: $60.99
30% off
new price: $42.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Thread Size M8
  • Material - Machining Steel
  • Capacity 600 lb
  • Features Allows Handle to Rotate, Large Holding Capacity
  • Plunger Dia. 0.4400 in
See all product information

Product Information

Dimensions

Thread Size M8
Plunger Dia. 0.4400 in
Height Under Arm 0.97 in
Overall Height 3.4300 in
Overall Length 4.77 in
Overall Width 1.88 in
Overall Depth 3.43 in
Plunger Height 0.97 in
Arm Length 1.28 in
Spindle Thread Size M8
Fastener Thread Size 1/4 in
Tip Diameter 9/16 in

Details

Item Straight Line Clamp
Material - Machining Steel
Capacity 600 lb
Features Allows Handle to Rotate, Large Holding Capacity
Base Mounting Centers 1.44 in x 1.31 in
Application Metalworking, Welding, Assembly And Light Machining Fixture
Plunger Travel 1-1/4 in
Base Mounting Style Flange
Includes Spindle No
Holding Capacity - Maximum 600 lbf
Body Material Steel
Includes Locking Handle No
Plunger Travel1 1.25 in
Exerted Force : Applied Force - Pulling 34:1
Mounting Holes Center to Center - Short Side 1.31 in
Plunger Thread M8
Locking Position Extended, Retracted
Mounting Holes Center to Center - Long Side 1.44 in
Exerted Force : Applied Force - Pushing 23:1
Plunger Shape Round
Accommodates Workpiece Variation No
Recommended Spindle Manufacturer Model Number 207203-M
Handle Orientation Horizontal
Requires Articulation No
Includes Mounting Nut No
Spindle Material Steel
Reflectivity Reflective
Handle Color Red
Clamping Force 600 lb
Tip Material Steel
Series 600 Series Straight Line

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 600 lbf, Plunger Travel 1.25 in, Plunger Height 0.97 in, Plunger Thread M8, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.28 in, Body Material Steel, Clamping Force 600 lb, Exerted Force : Applied Force - Pulling 34:1
