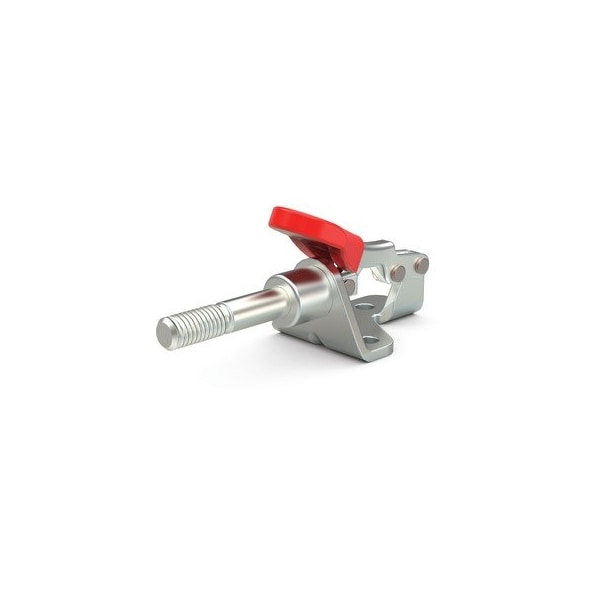

Clamp Straight-Line Action 601-O
- Mfr # 601-O
- Zoro # G3129799
product price:Â
$
19.89
/ea
Key Features
Application
Metalworking, Welding, Assembly And Light Machining Fixture
Overall Length
2.86 in
Overall Width
1.05 in
Handle Orientation
Horizontal
Plunger Thread
1/4-20
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 601-O
- Zoro #
- G3129799
- UPC #
- -
- Country of Origin
- United States
- Item
- Clamp Straight-Line Action 601-O
- Application
- Metalworking, Welding, Assembly And Light Machining Fixture
- Handle Orientation
- Horizontal
- Plunger Thread
- 1/4-20
- Handle Color
- Red
- Plunger Travel1
- 0.63 in
- Includes Spindle
- No
- Body Material
- Steel
- Exerted Force : Applied Force - Pushing
- 14:1
- Base Mounting Style
- Flange
- Includes Locking Handle
- No
- Exerted Force : Applied Force - Pulling
- 25:1
- Holding Capacity - Maximum
- 100 lbf
- Clamping Force
- 100 lb
- Locking Position
- Extended, Retracted
- Reflectivity
- Reflective
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Short Side
- 0.63 in
- Handle Material
- Steel with Plastic Cover
- Requires Articulation
- No
- Includes Mounting Nut
- No
- Mounting Holes Center to Center - Long Side
- 0.63 in
- Plunger Shape
- Round
- Series
- 600 Series Straight Line
Description
Clamp Straight-Line Action 601-O, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 100 lbf, Plunger Travel 0.63 in, Plunger Height 0.5 in, Plunger Thread 1/4-20, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.53 in, Body Material Steel, Clamping Force 100 lb
