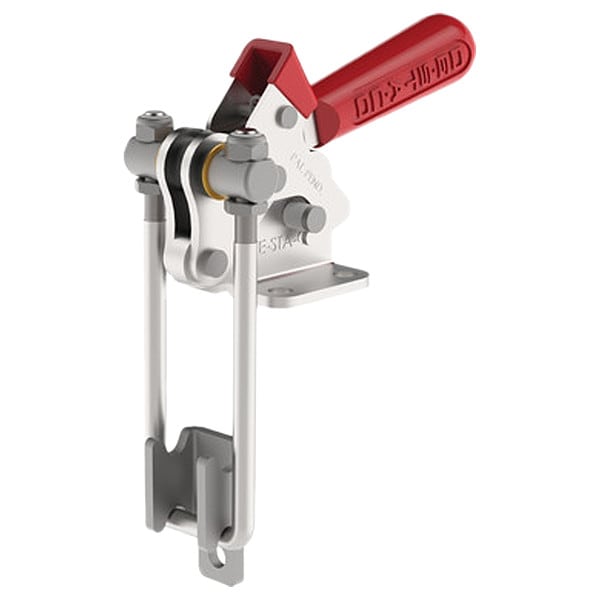

Locking Latch Clamp, 5.77 in L, 2.38 in W
Mfr # 344-RSS
Zoro # G510947380
product price:Â
$
181.99
/ea
Free Shipping & Returns
Key Features
Body Material
Stainless Steel
Includes
Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
Application
Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
Height Under Arm
0.5 in
Overall Depth
6.56 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 344-RSS
- Zoro #
- G510947380
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Latch Clamp
- Body Material
- Stainless Steel
- Includes
- Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
- Application
- Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
- Reflectivity
- Reflective
- Handle Orientation
- Horizontal
- Requires Articulation
- Yes
- Drawing Movement Without Thumb Control
- 2.46 in
- Hook Type
- Vertical U
- Handle Color
- Red
- Mounting Holes Center to Center - Long Side
- 1.44 in
- Includes Latch Plate
- Yes
- Base Mounting Style
- Flange
- Recommended Latch Plate Manufacturer Model Number
- 344901
- Drawing Movement With Thumb Control
- 2.46 in
- Handle Material
- Stainless Steel
- Exerted Force : Applied Force - Pulling
- 45:1
- Holding Capacity - Maximum
- 2,000 lbf
- Mounting Holes Center to Center - Short Side
- 1.25 in
- Hook Adjustment - Maximum
- 1.22 in
- Includes Locking Handle
- Yes
Description
Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 2,000 lbf, Hook Adjustment - Maximum 1.22 in, Drawing Movement Without Thumb Control 2.46 in, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Vertical U, Application Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels, Arm Length 5.04 in, Body Material Stainless Steel, Drawing Movement With Thumb Control 2.46 in
