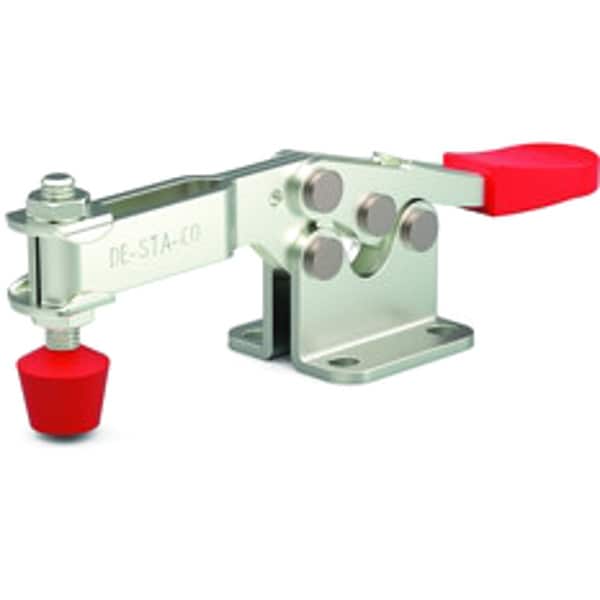

Toggle Clamp, Horiz, 1.53 In, 5.50 In
- Mfr # 215-U
- Zoro # G1963227
product price:Â
$
17.69
/ea
Key Features
Type
Horizontal Handle Hold Down
Holding Capacity (Lb.)
200
Overall Height (In.)
1.53 in
Body Material
Steel
Overall Length (In.)
5.48 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 215-U
- Zoro #
- G1963227
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Toggle Clamp
- Type
- Horizontal Handle Hold Down
- Holding Capacity (Lb.)
- 200
- Body Material
- Steel
- Spindle Material
- Neoprene
- Arm
- U-Shaped
- Spindle
- Flat Cushion Neoprene
- Includes
- Spindle (202208-M), Flanged Washer (215105)
- Handle
- 87 Degrees
- Base Mounting Centers (In.)
- 1.00 x 0.88
- Application
- Assembly, Checking Fixtures, Closures, Welding, Wood Working
- Clamp Arm Opening Angle
- 87 Degrees
- Base Mounting Style
- Flange
- Holding Capacity - Maximum
- 200 lbf
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Long Side
- 0.87 in
- Includes Locking Handle
- No
- Mounting Holes Center to Center - Short Side
- 1.06 in
- Tip Material
- Neoprene
- Handle Orientation
- Horizontal
- Arm Style
- U-Bar
Dimensions
- Overall Height (In.)
- 1.53 in
- Overall Length (In.)
- 5.48 in
- Height Under Arm (In.)
- 1.0 in
- Dia. (In.)
- 0.2 in
- Thread Size
- M6
- Arm Length
- 2.26 in
- Overall Length
- 5.46 in
- Overall Depth
- 1.53 in
- Height Under Arm
- 1 in
- Overall Width
- 1.38 in
- Spindle Thread Size
- M6
- Wire Rope Length
- 5.46 in
- Length
- 5.46 in
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 200 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 87 Degrees , Arm Length 2.26 in, Height Under Arm 1 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Welding, Wood Working, Body Material Steel, Includes Spindle (202208-M), Flanged Washer (215105), Mounting Holes Center to Center - Long Side 0.87 in
